Detail produk:
|
| produk: | Fitting pipa las Butt mulus baja | Standar: | ASME B16.9/B16.28 |
|---|---|---|---|
| Jenis pas: | Siku, Tee, Peredam, Tutup, Salib, | Bahan: | Baja karbon ASTM A234 WPB |
| ketebalan dinding: | Sch 5, sch10, STD, sch20, sch30, sch40 XS, sch60, sch80, sch100, sch120, sch160, sch xxs | Lapisan permukaan: | Lapisan cat hitam, lapisan minyak tahan karat, lapisan galvanis hot dip |
| Jenis koneksi: | Ujung pengelasan butt, ujung berulir | Pengepakan: | kotak karton, kasus kayu lapis |
| Menyoroti: | B16.9 ASTM A234 WPB Siku,5D Tikungan ASTM A234 WPB Siku,Baja ASME Siku A234 WPB |
||
Pemasangan Pipa Baja ASME B16.9 / B16.28 Butt weled Elbow Tee Reducer Cap Cross Saddle ASTM A234 WPB
ASME B16.9 mencakup dimensi keseluruhan, toleransi, peringkat, pengujian, dan penandaan untuk buttwelding fitting karbon tempa dan baja paduan buatan pabrik NPS 1/2 hingga 48 (DN 15 hingga 1200).Ini mencakup alat kelengkapan dari setiap ketebalan dinding yang dapat diproduksi.Standar ini tidak mencakup fitting buttwelding tahan korosi tekanan rendah.Lihat MSS SP-43, Kelengkapan Pengelasan Butt Stainless Steel Tempa.
Siku radius pendek dan pengembalian, yang sebelumnya termasuk dalam ASME B16.28-1994, termasuk dalam standar ini.
B16.9 harus digunakan bersama dengan peralatan yang dijelaskan dalam volume lain dari seri standar ASME B16 serta dengan standar ASME lainnya, seperti Kode Boiler dan Bejana Tekan dan Kode Perpipaan B31.
Standar: ASME B16.9 / B16.28
Jenis pas:

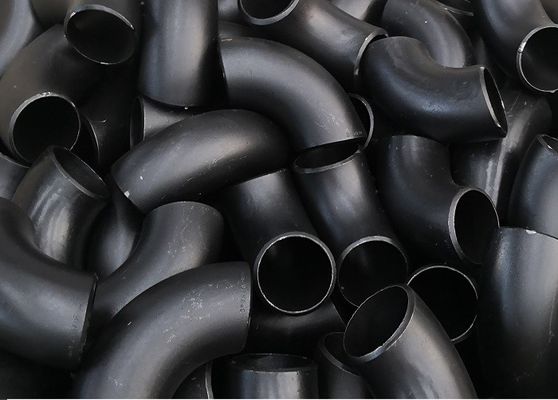

Elbow LR ( raidus panjang) SR (radius pendek) 45/60/90/180DEG;3D/5D Tekuk 45DEG/90DEG;

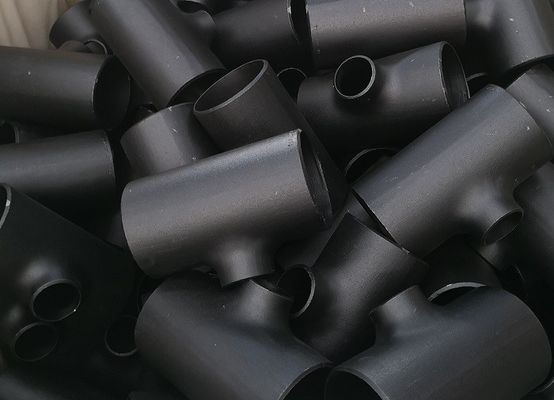

Tee, Tee sama, Tee pereduksi, silang , sadel

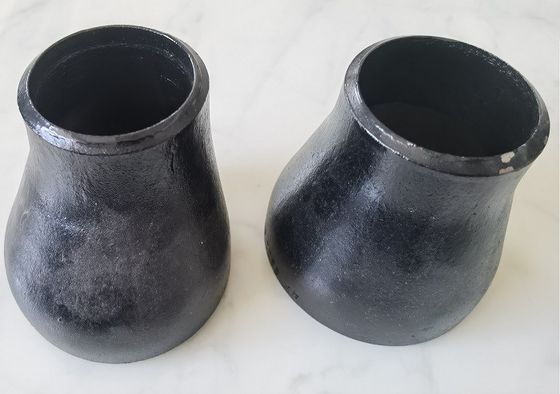

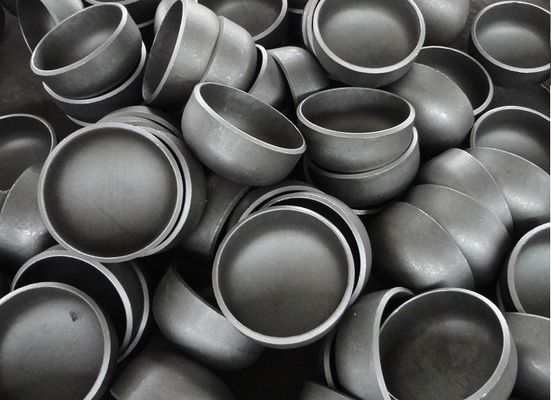

Peredam Peredam konsentris, Peredam eksentrik, tutup ujung pipa
Ketebalan dinding:
SCH5, SC5S, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S , STD, XS, SCH60, SCH80, SCH100, SCH120, SCH160, SCH XXS
Kisaran ukuran:1/2 "sampai 24" tipe mulus;4 "- 72" tipe dijalin
Untuk m: mulus dan berbelit-belit
Bahan:
baja karbon ASTM A234 WPB, WP9, ASTM A420 Gr.WPL6, ASTM A105, ASTM A694 F42-F70
baja tahan karat ASTM A403 WP304/304L;WP316/316L;WP321;DIN1.4301;DIN1.4306;DIN1.4401;DIN 1.4404
Pengepakan: kotak karton untuk ukuran kecil hingga 2 ", kotak kayu lapis atau palet layak laut
STANDAR KETEBALAN DINDING BAJA KARBON Tempa
| Ukuran Pipa Nominal | Diameter luar | Ketebalan Dinding Nominal | |||||||||||||||||
| SEBUAH | B | SEPERTI SAYA | JIS | KERIUHAN | JIS(1) | DIN(2) | SCH10 | SCH20 | SCH30 | penyakit menular seksual | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 | XXS |
| 15 | 1/2" | 21.3 | 21.7 | 21.3 | 2.8 | 2.0 | 2.11 | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 | |||||
| 20 | 3/4" | 26.7 | 27.2 | 26.9 | 2.8 | 2.3 | 2.11 | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 | |||||
| 25 | 1" | 33.4 | 34.0 | 33.7 | 3.2 | 2.6 | 2.77 | 2.90 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 | |||||
| 32 | 1 1/4" | 422 | 42,7 | 42.4 | 3.5 | 2.6 | 2.77 | 297 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | 9.70 | |||||
| 40 | 1 1/2" | 48.3 | 48.6 | 48.3 | 3.5 | 2.9 | 2.77 | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | 10.15 | |||||
| 50 | 2" | 60.3 | 60.5 | 60.3 | 3.8 | 2.9 | 2.77 | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | 11.07 | |||||
| 65 | 2 1/2" | 73.0 | 76.3 | 76.1 | 4.2 | 2.9 | 3.05 | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | 14.02 | |||||
| 80 | 3" | 88.9 | 89.1 | 88.9 | 4.2 | 3.2 | 3.05 | 4.78 | 5.49 | 5.49 | 7.62 | 7.62 | 11.13 | 15.24 | |||||
| 90 | 3-1/2" | 101.6 | 101.6 | — | 4.2 | — | 3.05 | 4.78 | 5.74 | 5.74 | 8.08 | 8.08 | - | — | |||||
| 100 | 4" | 114.3 | 114.3 | 114.3 | 4,5 | 3.6 | 3.05 | 4.78 | 6.02 | 6.02 | 8.56 | 8.56 | 11.13 | 13.49 | 17.12 | ||||
| 125 | 5" | 141.3 | 139.8 | 139.7 | 4,5 | 4.0 | 3.40 | - | 6.55 | 6.55 | 9.53 | 9.53 | 12.70 | 15,99 | 19.05 | ||||
| 150 | 6" | 168.3 | 165.2 | 168.3 | 5.0 | 4,5 | 3.40 | 4,5 | - | 7.11 | 7.11 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | |||
| 200 | 8" | 219.1 | 216.3 | 219.1 | 5.8 | 6.3 | 376 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.70 | 12.70 | 1509 | 18.26 | 20.62 | 23.01 | 22.23 |
| 250 | 10" | 273.1 | 267.4 | 273.0 | 6.6 | 6.3 | 4.19 | 6.35 | 7.80 | 9.27 | 9.27 | 12.70 | 12.70 | 15.09 | 18.26 | 21.44 | 25.40 | 28.58 | 25.40 |
| 300 | 12" | 323.9 | 328.9 | 323.9 | 6.9 | 7.1 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.70 | 17.48 | 21.44 | 25.40 | 28.58 | 33.32 | 25.40 |
| 350 | 14" | 355.6 | 355.6 | 355.6 | 7.9 | 8.0 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.70 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | |
| 400 | 16" | 406.4 | 406.4 | 406.4 | 7.9 | 8.8 | 6.35 | 7.92 | 9.53 | 9.53 | 12.70 | 16.66 | 12.70 | 21.44 | 26.19 | 30.96 | 36.53 | 40.49 | |
| 450 | 18" | 457.2 | 457.2 | 457.0 | 7.9 | 10.0 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.70 | 23.83 | 29.36 | 34.93 | 39.67 | 45.24 | |
| 500 | 20" | 508.0 | 508.0 | 508.0 | 7.9 | 11.0 | 6.35 | 9.53 | 1270 | 9.53 | 15.09 | 20.62 | 12.70 | 26.19 | 32.54 | 38.10 | 44.45 | 50,01 | |
| 550 | 22" | 558.8 | 558.8 | - | - | 6.35 | 9.53 | 12.70 | 9.53 | - | 2223 | 12.70 | 2858 | 34.93 | 41.28 | 47.63 | 53,98 | ||
| 600 | 24" | 609.6 | 609.6 | 610.0 | 12.5 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.70 | 30.96 | 38.89 | 46.02 | 52.37 | 59,54 | ||
| 650 | 26" | 660,4 | 660,4 | - | - | 7.92 | 12.70 | - | 9.53 | - | 12.70 | - | 一 | - | - | - | |||
| 700 | 28" | 711.1 | 711.2 | 711.0 | 125 | 7.92 | 1270 | 15.88 | 9.53 | — | 12.70 | ||||||||
| 750 | 30" | 762.0 | 762.0 | - | — | 7.92 | 12.70 | 15.88 | 9.53 | — | 12.70 | — | - | — | - | ||||
| 800 | 32" | 812.8 | 812.8 | 813.0 | 12.5 | 7.92 | 12.70 | 15.88 | 9.53 | 17.48 | 12.70 | - | |||||||
| 850 | 34" | 863.6 | 863.6 | — | - | 7.92 | 12.70 | 15.88 | 9.53 | 17.48 | 12.70 | — | JIS G34525 ASME B36.10M JIS G3454 DIN2448 JIS G3455 DIN2458 JISG3457 | ||||||
| 900 | 36" | 914.4 | 914.4 | 914.0 | 12.5 | 7.92 | 12.70 | 15.88 | 9.53 | 19.05 | 12.70 | — | |||||||
| 950 | 38" | 965.2 | 965.2 | - | - | — | — | — | 9.53 | — | 12.70 | - | |||||||
| 1000 | 40" | 1016.0 | 1016.0 | 1016.0 | 12.5 | - | - | - | 9.53 | - | 12.70 | - | |||||||
| 1050 | 42" | 1066.8 | 1066.8 | - | - | - | - | - | 9.53 | - | 12.70 | - | |||||||
| 1100 | 44" | 1117,6 | 1117,6 | - | - | - | - | - | 9.53 | - | 12.70 | - | - | - | - | - | |||
| 1150 | 46" | 1168.4 | 1168.4 | - | - | - | - | - | 9.53 | - | 1270 | - | - | - | - | 一 | |||
| 1200 | 48" | 1219.2 | 1219.2 | 1220.0 | - | - | - | - | 9.53 | - | 12.70 | - | - | - | - | - | |||
