Detail produk:
|
| produk: | Siku Pipa Baja dilas butt | Sudut: | 30 derajat, 45 derajat, 60 derajat, 90 derajat, 120 derajat, 180 derajat |
|---|---|---|---|
| Standar: | ANSI ASME B16.9, B16.28, DIN2605, EN10253, JIS B231 | Radius: | SR Radius pendek, LR Radius panjang, R=2D,3D,5D |
| ketebalan dinding: | 2mm- 60mm, SCH10, SCH20, SCH30, STD SCH40 | Bahan: | carbon steel ASTM A234 WPB, P265GH; baja karbon ASTM A234 WPB, P265GH; Stainless st |
| Ukuran: | 1/2" to 24" for seamless type; 1/2" hingga 24" untuk tipe mulus; < | lapisan antirust: | Cat hitam, minyak tahan karat, hot dip galvanized |
| Cahaya Tinggi: | 120Deg STEEL PIPE SIKU,6 sch 40 90 derajat siku,A234 WPB sch 40 90 derajat siku |
||

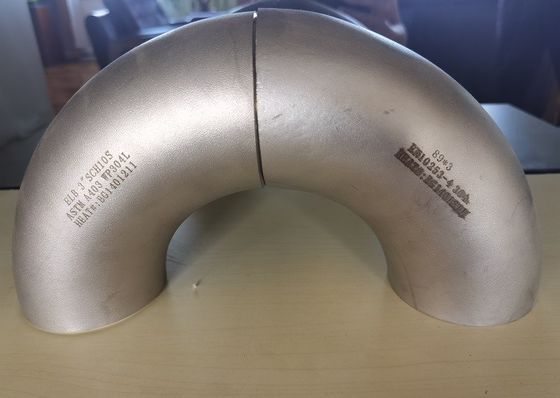

Butt Welding Steel pipe Elbow ASME B16.9/B16.28;EN10253 ;DIN2605;JIS B2311;GOST 17375
Siku pipa baja adalah bagian penting dalam sistem perpipaan untuk mengubah arah aliran fluida.Hal ini digunakan untuk menghubungkan dua pipa dengan diameter nominal yang sama atau berbeda, dan untuk membuat pipa berbelok ke arah tertentu dari 45 derajat atau 90 derajat.Siku dapat berkisar dari sudut arah, jenis sambungan, panjang dan jari-jari, jenis material.
| Teknik | Dorongan panas, pernikahan |
| Standar | ASME B16.9, ASME B16.28, EN10253, DIN2605, JIS B2311, GOST 17375-2001 |
| Bahan | Baja karbon ASTM A234 WPB, A860 WPHY42-70, A420 WPL6, P235GH, P265GH, SS400, ST37, CT20, |
| Baja tahan karat 304/304L,316/316L,321,310S,347H,1,4301, 1,4404 | |
| Kisaran ukuran | Tipe mulus untuk Diameter luar 1/2 "hingga 24" atau 21mm hingga 610mm |
| Jenis dilas untuk diameter luar 2 "hingga 72", atau 60mm hingga 1800mm | |
| Sudut siku | 30 derajat, 45 derajat, 60 derajat, 90 derajat, 120 derajat, 180 derajat |
| Jari-jari siku | SR radius pendek ( R=1D), radius panjang LR (R=1.5D), tekuk R=3D atau R=5D, |
| ketebalan dinding | 1.6mm hingga 60mm, SCH5, SCH5S, SCH10, SCH10S, SCH20, SCH30, STD, SCH40, XS SCH60, SCH80, SCH120, SCH160, XXS |
STANDAR KETEBALAN DINDING BAJA KARBON Tempa
| Ukuran Pipa Nominal | Diameter luar | Ketebalan Dinding Nominal | |||||||||||||||||
| SEBUAH | B | SEPERTI SAYA | JIS | KERIUHAN | JIS(1) | DIN(2) | SCH10 | SCH20 | SCH30 | penyakit menular seksual | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 | XXS |
| 15 | 1/2" | 21.3 | 21.7 | 21.3 | 2.8 | 2.0 | 2.11 | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 | |||||
| 20 | 3/4" | 26.7 | 27.2 | 26.9 | 2.8 | 2.3 | 2.11 | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 | |||||
| 25 | 1" | 33.4 | 34.0 | 33.7 | 3.2 | 2.6 | 2.77 | 2.90 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 | |||||
| 32 | 1 1/4" | 422 | 42,7 | 42.4 | 3.5 | 2.6 | 2.77 | 297 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | 9.70 | |||||
| 40 | 1 1/2" | 48.3 | 48.6 | 48.3 | 3.5 | 2.9 | 2.77 | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | 10.15 | |||||
| 50 | 2" | 60.3 | 60.5 | 60.3 | 3.8 | 2.9 | 2.77 | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | 11.07 | |||||
| 65 | 2 1/2" | 73.0 | 76.3 | 76.1 | 4.2 | 2.9 | 3.05 | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | 14.02 | |||||
| 80 | 3" | 88.9 | 89.1 | 88.9 | 4.2 | 3.2 | 3.05 | 4.78 | 5.49 | 5.49 | 7.62 | 7.62 | 11.13 | 15.24 | |||||
| 90 | 3-1/2" | 101.6 | 101.6 | — | 4.2 | — | 3.05 | 4.78 | 5.74 | 5.74 | 8.08 | 8.08 | - | — | |||||
| 100 | 4" | 114.3 | 114.3 | 114.3 | 4,5 | 3.6 | 3.05 | 4.78 | 6.02 | 6.02 | 8.56 | 8.56 | 11.13 | 13.49 | 17.12 | ||||
| 125 | 5" | 141.3 | 139.8 | 139.7 | 4,5 | 4.0 | 3.40 | - | 6.55 | 6.55 | 9.53 | 9.53 | 12.70 | 15,99 | 19.05 | ||||
| 150 | 6" | 168.3 | 165.2 | 168.3 | 5.0 | 4,5 | 3.40 | 4,5 | - | 7.11 | 7.11 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | |||
| 200 | 8" | 219.1 | 216.3 | 219.1 | 5.8 | 6.3 | 376 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.70 | 12.70 | 1509 | 18.26 | 20.62 | 23.01 | 22.23 |
| 250 | 10" | 273.1 | 267.4 | 273.0 | 6.6 | 6.3 | 4.19 | 6.35 | 7.80 | 9.27 | 9.27 | 12.70 | 12.70 | 15.09 | 18.26 | 21.44 | 25.40 | 28.58 | 25.40 |
| 300 | 12" | 323.9 | 328.9 | 323.9 | 6.9 | 7.1 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.70 | 17.48 | 21.44 | 25.40 | 28.58 | 33.32 | 25.40 |
| 350 | 14" | 355.6 | 355.6 | 355.6 | 7.9 | 8.0 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.70 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | |
| 400 | 16" | 406.4 | 406.4 | 406.4 | 7.9 | 8.8 | 6.35 | 7.92 | 9.53 | 9.53 | 12.70 | 16.66 | 12.70 | 21.44 | 26.19 | 30.96 | 36.53 | 40.49 | |
| 450 | 18" | 457.2 | 457.2 | 457.0 | 7.9 | 10.0 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.70 | 23.83 | 29.36 | 34.93 | 39.67 | 45.24 | |
| 500 | 20" | 508.0 | 508.0 | 508.0 | 7.9 | 11.0 | 6.35 | 9.53 | 1270 | 9.53 | 15.09 | 20.62 | 12.70 | 26.19 | 32.54 | 38.10 | 44.45 | 50,01 | |
| 550 | 22" | 558.8 | 558.8 | - | - | 6.35 | 9.53 | 12.70 | 9.53 | - | 2223 | 12.70 | 2858 | 34.93 | 41.28 | 47.63 | 53,98 | ||
| 600 | 24" | 609.6 | 609.6 | 610.0 | 12.5 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.70 | 30.96 | 38.89 | 46.02 | 52.37 | 59,54 | ||
| 650 | 26" | 660,4 | 660,4 | - | - | 7.92 | 12.70 | - | 9.53 | - | 12.70 | - | 一 | - | - | - | |||
| 700 | 28" | 711.1 | 711.2 | 711.0 | 125 | 7.92 | 1270 | 15.88 | 9.53 | — | 12.70 | ||||||||
| 750 | 30" | 762.0 | 762.0 | - | — | 7.92 | 12.70 | 15.88 | 9.53 | — | 12.70 | — | - | — | - | ||||
| 800 | 32" | 812.8 | 812.8 | 813.0 | 12.5 | 7.92 | 12.70 | 15.88 | 9.53 | 17.48 | 12.70 | - | |||||||
| 850 | 34" | 863.6 | 863.6 | — | - | 7.92 | 12.70 | 15.88 | 9.53 | 17.48 | 12.70 | — | JIS G34525 ASME B36.10M JIS G3454 DIN2448 JIS G3455 DIN2458 JISG3457 | ||||||
| 900 | 36" | 914.4 | 914.4 | 914.0 | 12.5 | 7.92 | 12.70 | 15.88 | 9.53 | 19.05 | 12.70 | — | |||||||
| 950 | 38" | 965.2 | 965.2 | - | - | — | — | — | 9.53 | — | 12.70 | - | |||||||
| 1000 | 40" | 1016.0 | 1016.0 | 1016.0 | 12.5 | - | - | - | 9.53 | - | 12.70 | - | |||||||
| 1050 | 42" | 1066.8 | 1066.8 | - | - | - | - | - | 9.53 | - | 12.70 | - | |||||||
| 1100 | 44" | 1117,6 | 1117,6 | - | - | - | - | - | 9.53 | - | 12.70 | - | - | - | - | - | |||
| 1150 | 46" | 1168.4 | 1168.4 | - | - | - | - | - | 9.53 | - | 1270 | - | - | - | - | 一 | |||
| 1200 | 48" | 1219.2 | 1219.2 | 1220.0 | - | - | - | - | 9.53 | - | 12.70 | - | - | - | - | - | |||
