Detail produk:
|
| Tekanan: | 150LB, 300LB, 600LB, 900LB, 1500LB, 2500LB | Standar: | ANSI B16.5, ANSI B16.47A, ANSI B16.47B, AWWA KELAS D, DIN, EN1092-1 |
|---|---|---|---|
| Tipe: | WN FLANGE, SO FLANGE, BLIND FLANGE, SW FLANGE, PLATE FLANGE, LAP JOINT FLANGE | Ukuran: | 1/2" SAMPAI 80", 0,5 INCI SAMPAI 80 INCI |
| Pengobatan permukaan: | LUKISAN HITAM, LUKISAN KUNING, GALVANISING, MINYAK ANTI KARAT | FLANGE WAJAH SEGEL: | WAJAH NAIK (RF), WAJAH DATA (FF), JENIS BERSAMA CINCIN (RTJ) |

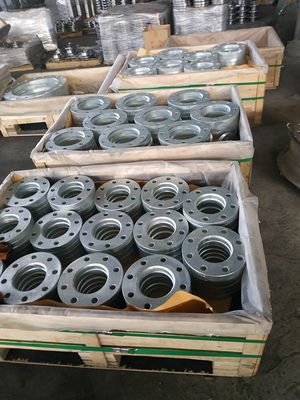

| Paket: | Kasing / palet kayu lapis yang layak untuk laut | Ketentuan Harga: | FOB, CIF, CFR |
| Periode produksi: | kurang dari 60 ton dalam 30 hari, lebih dari 60 ton 50 hari | Sertifikat: | PED, ISO |
| Bahan: | CARBON STEEL A105 A36 STAINLESS STEEL SS304L SS316L | ||
| Cahaya Tinggi: | Flensa baja galvanis 0,5 inci,flensa baja galvanis 80 inci |
||

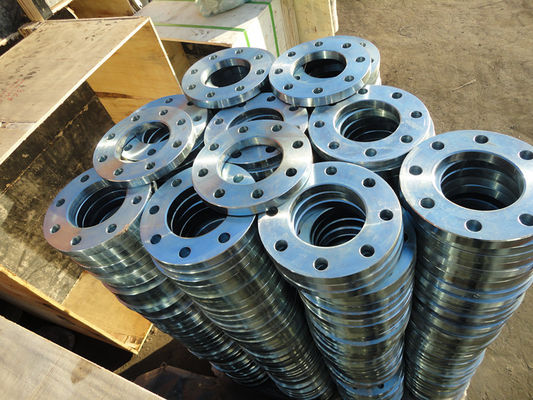

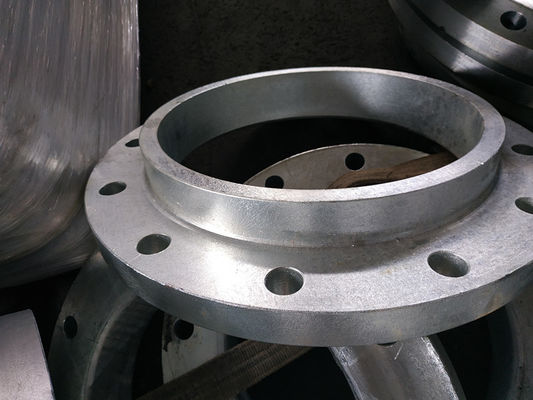

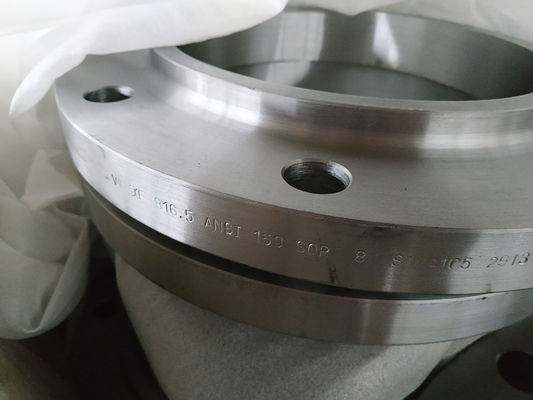

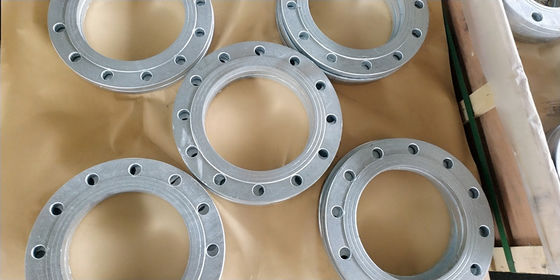

FLANGE BAJA GALVANIS ANSI B16.5 ASME B16.47 SLIP PADA FLANGE SORF FLANGE Tempa
| UKURAN | BAHAN | JENIS FLANGE |
| 1/2 "-80" | Besi tahan karat | flensa leher las |
| Slip pada Flange | ||
| flensa las soket | ||
| Flensa Sambungan LAP | ||
| Flensa berulir | ||
| tutup katup | ||
| BAJA KARBON, BAJA STAINLESS | flensa leher las | |
| Slip pada Flange | ||
| flensa las soket | ||
| Flensa Sambungan LAP | ||
| Flensa berulir | ||
| tutup katup | ||
| Wajah penyegelan flensa | RF dengan hasil akhir bergerigi | |
| FF dengan 3 garis air | ||
| FF dengan hasil akhir yang halus | ||
| RTJ (Jenis Sambungan Cincin) | ||
| FF dengan finishing bergerigi | ||
| RF dengan saluran air |
| Hai | D | B | G | M | A | J* | H | k | lubang | aku | Kg. |
| 1/2" | 88,9 | 11,1 | 34,9 | 30,2 | 21,3 | 15,7 | 47,6 | 60,3 | 4 | 15.9 | 0,500 |
| 3/4" | 98,4 | 12,7 | 42,9 | 38,1 | 26,7 | 20,8 | 52,4 | 69,8 | 4 | 15.9 | 0,700 |
| 1" | 107,9 | 14,3 | 50,8 | 49,2 | 33,5 | 26,7 | 55,6 | 79,4 | 4 | 15.9 | 1.100 |
| 1 1/4" | 117,5 | 15.9 | 63,5 | 58,8 | 42,2 | 35,1 | 57,1 | 88,9 | 4 | 15.9 | 1.500 |
| 1 1/2" | 127.0 | 17,5 | 73,0 | 65,1 | 48,3 | 40,9 | 61,9 | 98,4 | 4 | 15.9 | 1.800 |
| 2" | 152,4 | 19,0 | 92,1 | 77,8 | 60,3 | 52,6 | 63,5 | 120.6 | 4 | 19,0 | 2.700 |
| 2 1/2" | 177,8 | 22,2 | 104,8 | 90,5 | 73,1 | 62,7 | 69,8 | 139,7 | 4 | 19,0 | 4.400 |
| 3" | 190,5 | 23,8 | 127.0 | 107,9 | 88,9 | 78,0 | 69,8 | 152,4 | 4 | 19,0 | 5.200 |
| 3 1/2" | 215,9 | 23,8 | 139,7 | 122,2 | 101,6 | 90,2 | 71,4 | 177,8 | 8 | 19,0 | 6.400 |
| 4" | 228,6 | 23,8 | 157,2 | 134,9 | 114,3 | 102,4 | 76,2 | 190,5 | 8 | 19,0 | 7.500 |
| 5" | 254,0 | 23,8 | 185,7 | 163,5 | 141,2 | 128,3 | 88,9 | 215,9 | 8 | 22,2 | 9.200 |
| 6" | 279,4 | 25,4 | 215,9 | 192,1 | 168,4 | 154,2 | 88,9 | 241,3 | 8 | 22,2 | 11.000 |
| 8" | 342,9 | 28,6 | 269,9 | 246,1 | 219,1 | 202,7 | 101,6 | 298,4 | 8 | 22,2 | 18.300 |
| 10" | 406,4 | 30,2 | 323,8 | 304,8 | 273,0 | 254,5 | 101,6 | 361,9 | 12 | 25,4 | 25.000 |
| 12" | 482,6 | 31,7 | 381,0 | 365,1 | 323,8 | 304,8 | 114,3 | 431,8 | 12 | 25,4 | 39.000 |
| 14" | 533,4 | 34,9 | 412,7 | 400,0 | 355,6 | 336,5 | 127.0 | 476,2 | 12 | 28,6 | 51.000 |
| 16" | 596,9 | 36,5 | 469,9 | 457,2 | 406,4 | 387,3 | 127.0 | 539,7 | 16 | 28,6 | 60.000 |
| 18" | 635,0 | 39,7 | 533,4 | 504,8 | 457,2 | 438,1 | 139,7 | 577,8 | 16 | 31,7 | 71.000 |
| 20" | 698,5 | 42,9 | 584,2 | 558,8 | 508.0 | 488,9 | 144,5 | 635,0 | 20 | 31,7 | 88,000 |
| 22" | 749,3 | 46,0 | 641,2 | 609,6 | 558,8 | 539,7 | 149,2 | 692,1 | 20 | 34,9 | 102.000 |
| 24" | 812,8 | 47,6 | 692,1 | 663,6 | 609,6 | 590,5 | 152,4 | 749,3 | 20 | 34,9 | 119.000 |
| Pipa Diam Normal. | Flensa OD | terima kasihDari Flange Min | Diam. dari Pusat |
Diameter Wajah Terangkat | Panjang Hub.Y | Panjang Benang | Diam. dari Bolt Lingkaran |
Diam. dari Bolt lubang |
Nomor dari Baut |
Diam.dari Baut (inci) |
KG | LB | |
| inci | dn | HAI | C | x | G | kamu | T | SM | BH | BN | BD | ||
| 1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" | 20 | 98,50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69,90 | 15.80 | 4 | 1/2" | 0,7 | 1.5 |
| 1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
| 1-1/4" | 32 | 117,50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
| 2" | 50 | 152,50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
| 2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104,60 | 28.40 | 28.40 | 139,70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
| 3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
| 3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139,70 | 31.80 | 31.80 | 177,80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
| 4" | 100 | 228.50 | 23.90 | 134,90 | 157,20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
| 5" | 125 | 254.00 | 23.90 | 163,60 | 185.70 | 36.60 | 36.60 | 215,90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
| 6" | 150 | 279.50 | 25.40 | 192.00 | 215,90 | 39.60 | 39.60 | 241,30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
| 8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
| 10" | 250 | 406,50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
| 12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
| 14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
| 16" | 400 | 597,00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
| 18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
| 20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
| 24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82,60 | 82,60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
