Detail produk:
|
| Bahan: | A105 | Warna: | Cat Hitam dan Kuning |
|---|---|---|---|
| Tekanan: | Class150-2500 | ||
| Cahaya Tinggi: | 400 LBS npt ulir flange,npt ulir flange CS A105,ANSI B16.5 B16.47 600 lb flange |
||

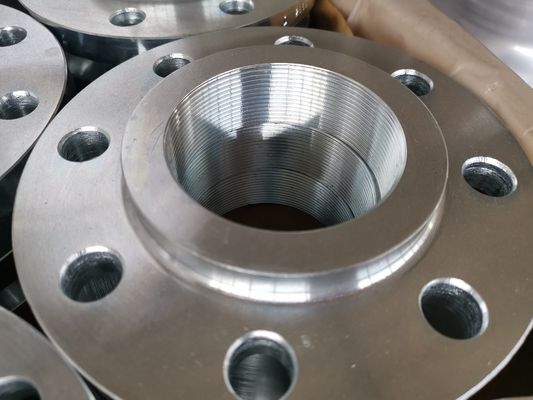

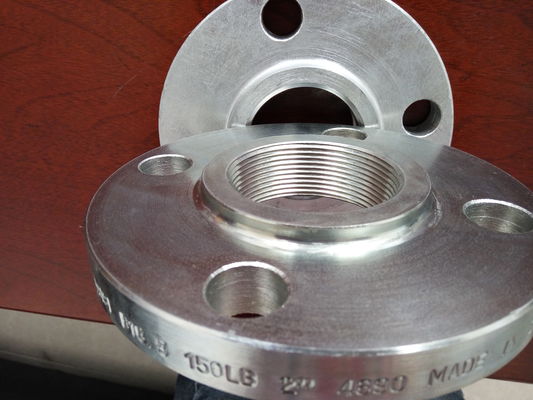

ANSI B16.5& B16.47 THREADED NPT FLANGE CS A105 TEKANAN 150LBS-2500LBS WNRF,SORF,BLIND,SWRF,LJFF CAT KUNING DAN HITAM
|
STANDAR
|
Tipe |
Tekanan |
Bahan | ukuran |
Proses |
Permukaan pengobatan |
|
ANSI B16.5, ASME16.47
|
SORFWNRF BUTA SWRF LJFF |
150LBS, 300LBS, 400LBS,600LB 900LBS, 1500LBS,2500LBS |
baja karbon besi tahan karat
|
1/2"---60" |
DItempa, ditempa |
cat hitam cat kuning Minyak ringan |
| KELAS 150 | |||||||
| PERKIRAAN BERAT | |||||||
| UKURAN | leher las | Slip-on dan Berulir | Sambungan Putaran | Buta | Pengelasan soket | ||
| SCH40 | SCH80 | SCH160 | |||||
| 1/2" | 0,60 | 0,60 | 0,60 | 0,41 | 0,40 | 0,43 | 0,41 |
| 3/4" | 0,90 | 0,90 | 0,90 | 0,58 | 0,58 | 0.63 | 0,58 |
| 1" | 1.14 | 1.18 | 1.24 | 0,80 | 0,80 | 0,89 | 0,80 |
| 1-1/4" | 1.41 | 1.48 | 1,54 | 1.07 | 1.07 | 1.20 | 1.07 |
| 1-1/2" | 1.81 | 1.90 | 2.01 | 1.37 | 1.37 | 1.58 | 1.37 |
| 2" | 2.72 | 2.84 | 3.07 | 2.21 | 2.21 | 2.39 | 2.21 |
| 2 1-2" | 4.45 | 4.70 | 4.98 | 3.32 | 3.34 | 4.07 | 3.32 |
| 3" | 5.22 | 5.54 | 5.90 | 3.83 | 3.83 | 4.92 | 3.83 |
| 3-1/2" | 6.40 | 6.76 | 7.46 | 5.20 | 5.20 | 5.90 | 5.20 |
| 4" | 7.49 | 7.96 | 8.90 | 5.40 | 5.40 | 7.13 | 5.90 |
| 5" | 9.53 | 10.54 | 12.04 | 6.26 | 6.26 | 8.72 | 6.80 |
| 6" | 11.80 | 13.12 | 15.11 | 7.50 | 7.50 | 11.40 | 8.60 |
| 8" | 19.10 | 21.34 | 25.84 | 12.30 | 12.40 | 20.10 | 13.60 |
| 10" | 24.50 | 28.85 | 35.74 | 17.10 | 17.10 | 28.70 | 19.50 |
| 12" | 39.90 | 46.80 | 58.01 | 26.50 | 26.50 | 43.80 | 29.10 |
| 14" | 51.80 | 62.58 | 77.60 | 34.50 | 38.50 | 58.20 | 40.90 |
| 16" | 64.50 | 79.42 | 98.82 | 45.50 | 51.20 | 77.40 | 44.50 |
| 18" | 74,90 | 97.63 | 124.32 | 48.50 | 55.70 | 94.00 | 59.00 |
| 20" | 89.40 | 120.44 | 154.18 | 61.80 | 70.20 | 122,70 | 74,90 |
| 24" | 121.70 | 169,37 | 223.92 | 87.70 | 98.70 | 187.00 | 99,90 |
Bahan
1) Baja Karbon A105 & Baja Tahan Karat SS304, SS316, SS316L
Permukaan Antirust:
Permukaan antirust 1: Minyak ringan antirust
Permukaan antirust 2: Lapisan cat hitam
Permukaan antirust 3: Lapisan cat kuning
Antirust permukaan 4: Galnav (Hot Dipped Galvanized atau Electro Galvanized)
Hubungkan Wajah:
Permukaan 1: Stok selesai
Permukaan 2: Sprial bergerigi
Permukaan 3: Dua atau tiga alur (Saluran Air)
Permukaan 4: Hasil akhir yang halus
Syarat
1) Pembayaran: L/C yang tidak dapat dibatalkan pada pandangan atau T/T, D/P
2) Istilah pengiriman FOB China Port atau CIF Buyer's Port
3) Pengepakan: Pallet / kasing kayu lapis
