Detail produk:
|
| Standar: | ASME B16.9 | Ukuran: | 1/2 "-48" |
|---|---|---|---|
| Bahan: | A234 WPB/SS304/314L/SS316/316L | Ketebalan: | SCH5, SCH10, SCH20, SCH30, STD, SCH40, SCH80, SCH120, SCH160 |
| Lapisan: | Cat Hitam, Minyak, Galvanis Dingin Dan Galvanis Panas | Paket: | Kasus Kayu Lapis Dan Palet |
| Cahaya Tinggi: | ASME B16.9 ButtWeld Reducer Tee,SCH120 22mm sama tee,Fitting Pipa Tee Sama Mulus |
||

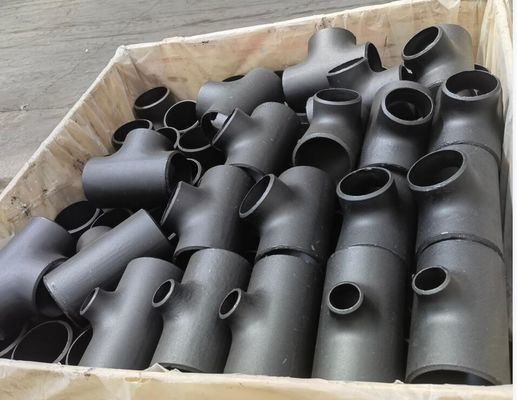

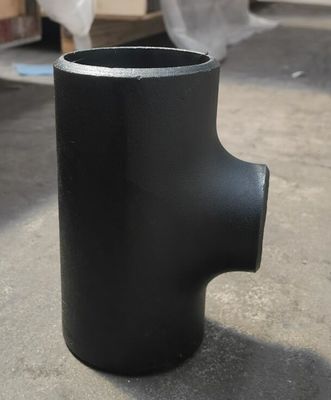

ASME B16.9 BUTT WELDING STD SCH40, SCH80, SCH160 TEE SEAMLESS EQUAL DAN MENGURANGI TEE CAT HITAM
Bahan: ASME B16.9
Ukuran: 1/2 "-48"
Ketebalan: SCH5, SCH10, SCH20, SCH30, STD, SCH40, SCH80, SCH120, SCH160
Pelapisan: Cat hitam, Minyak, Galvanis Dingin dan Galvanis Panas Hot

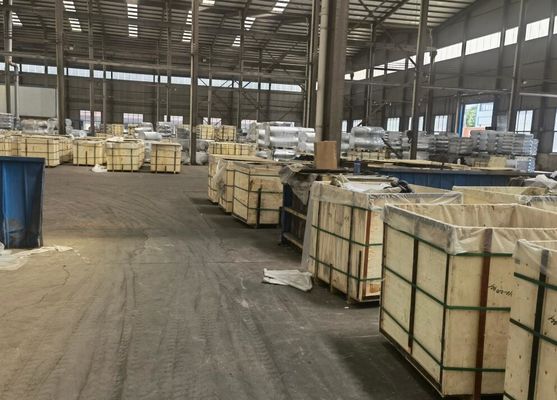

Paket: Kasus Kayu Lapis Dan Palet
| Ukuran Pipa Nominal (Inci) | Diameter luar di bevel |
Pusat-ke-End | |
|---|---|---|---|
| Lari (C) | Toko(M) | ||
| 1/2 | 21.3 | 25 | 25 |
| 3/4 | 26.7 | 29 | 29 |
| 1 | 33.4 | 38 | 38 |
| 1 1/4 | 42.2 | 48 | 48 |
| 1 1/2 | 48.3 | 57 | 57 |
| 2 | 60.3 | 64 | 64 |
| 2 1/2 | 73.0 | 76 | 76 |
| 3 | 88.9 | 86 | 86 |
| 3 1/2 | 101.6 | 95 | 95 |
| 4 | 114.3 | 105 | 105 |
| 5 | 141.3 | 124 | 124 |
| 6 | 168.3 | 143 | 143 |
| 8 | 219.1 | 178 | 178 |
| 10 | 273.0 | 216 | 216 |
| 12 | 323.8 | 254 | 254 |
| 14 | 355.6 | 279 | 279 |
| 16 | 406.4 | 305 | 305 |
| 18 | 457.0 | 343 | 343 |
| 20 | 508.0 | 381 | 381 |
| 22 | 559.0 | 419 | 419 |
| 24 | 610.0 | 432 | 432 |
Dimensi dalam milimeter
Sumber : ASME B16.9 Tee – 2007
Dimensi dalam milimeter kecuali dinyatakan lain.Ketebalan dinding (untuk) harus ditentukan oleh pelanggan.
| Ukuran Pipa Nominal (Inci) | Diameter luar di bevel |
Pusat-ke-End | |||
|---|---|---|---|---|---|
| Lari | Toko | Lari | Toko | Lari (C) | Toko (M) |
| 1/2 | 1/4 3/8 |
21.3 | 13.7 17.3 |
25 | 25 |
| 3/4 | 3/8 1/2 |
26.7 | 17.3 21.3 |
29 | 29 |
| 1 | 1/2 3/4 |
33.4 | 21.3 26.7 |
38 | 38 |
| 1 1/4 | 1/2 3/4 1 |
42.2 | 21.3 26.7 33.4 |
48 | 48 |
| 1 1/2 | 1/2 3/4 1 1 1/4 |
48.3 | 21.3 26.7 33.4 42.2 |
57 | 57 |
| 2 | 3/4 1 1 1/4 1 1/2 |
60.3 | 26.7 33.4 42.2 48.3 |
64 | 44 51 57 60 |
| 2 1/2 | 1 1 1/4 1 1/2 2 |
73.0 | 33.4 42.2 48.3 60.3 |
76 | 57 64 67 70 |
| 3 | 1 1/4 1 1/2 2 2 1/2 |
88.9 | 42.2 48.3 60.3 73.0 |
86 | 70 73 76 83 |
| 3 1/2 | 1 1/2 2 2 1/2 3 |
101.6 | 48.3 60.3 73.0 88.9 |
95 | 79 83 89 92 |
| 4 | 1 1/2 2 2 1/2 3 3 1/2 |
114.3 | 48.3 60.3 73.0 88.9 101.6 |
105 | 86 89 95 98 102 |
| 5 | 2 2 1/2 3 3 1/2 4 |
141.3 | 60.3 73.0 88.9 101.6 114.3 |
124 | 105 108 111 114 117 |
| 6 | 2 1/2 3 3 1/2 4 5 |
168.3 | 73.0 88.9 101.6 114.3 141.3 |
143 | 121 124 127 130 137 |
| 8 | 3 1/2 4 5 6 |
219.1 | 101.6 114.3 141.3 168.3 |
178 | 152 156 162 168 |
| 10 | 4 5 6 8 |
273.0 | 114.3 141.3 168.3 219.1 |
216 | 184 191 194 203 |
| 12 | 5 6 8 10 |
323.8 | 141.3 168.3 219.1 273.0 |
254 | 216 219 229 241 |
| 14 | 6 8 10 12 |
355.6 | 168.3 219.1 273.0 323.8 |
279 | 238 248 257 270 |
| 16 | 6 8 10 12 14 |
406.4 | 168.3 219.1 273.0 323.8 355.6 |
305 | 264 273 283 295 305 |
| 18 | 8 10 12 14 16 |
457.0 | 219.1 273.0 323.8 355.6 406.4 |
343 | 298 308 321 330 330 |
| 20 | 8 10 12 14 16 18 |
508.0 | 219.1 273.0 323.8 355.6 406.4 457.0 |
381 | 324 333 346 356 356 368 |
| 22 | 10 12 14 16 18 20 |
559.0 | 273.0 323.8 355.6 406.4 457.0 508.0 |
419 | 359 371 381 381 394 406 |
| 24 | 10 12 14 16 18 20 22 |
610.0 | 273.0 323.8 355.6 406.4 457.0 508.0 559.0 |
432 | 384 397 406 406 419 432 432 |
Dimensi dalam milimeter
Sumber : ASME B16.9 Tee– 2018
| Ukuran Pipa Nominal | 1/2 hingga 2.1/2 | 3 hingga 3.1/2 | 4 | 5 sampai 8 | 10 sampai 18 | 20 hingga 24 | 26 sampai 30 | 32 hingga 48 |
| Dia luar di Bevel (D) |
+1.6 -0.8 |
1.6 | 1.6 | +2.4 -1.6 |
+4 -3.2 |
+6.4 -4.8 |
+6.4 -4.8 |
+6.4 -4.8 |
| Di dalam Dia di Akhir | 0.8 | 1.6 | 1.6 | 1.6 | 3.2 | 4.8 | +6.4 -4.8 |
+6.4 -4.8 |
| Pusat ke Ujung (C / M) | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 5 |
| Dinding Thk (t) | Tidak kurang dari 87,5% dari Ketebalan Dinding Nominal | |||||||
Toleransi dimensi dalam milimeter kecuali dinyatakan lain dan sama ± kecuali seperti yang disebutkan.
