Detail produk:
|
| Bahan: | 304, 304L, 321, 316, 316L, dll | Ketebalan: | SCH10, SCH20, SCH30, STD, SCH40, SCH80, SCH120, SCH160 XXS |
|---|---|---|---|
| Ukuran: | 1/2 "KE 48" | Standar: | ASME, MSS, HG, DIN, JIS, GB |
| Tipe: | Radius Panjang 90 derajat, Radius Pendek 90 derajat, Radius Panjang 45 derajat, Pita Pengembalian 18 | ||
| Cahaya Tinggi: | 316 ANSI B16.9 ButtWeld ELBOW,304 321 ButtWeld ELBOW,SCH120 XXS SIKU Mulus |
||

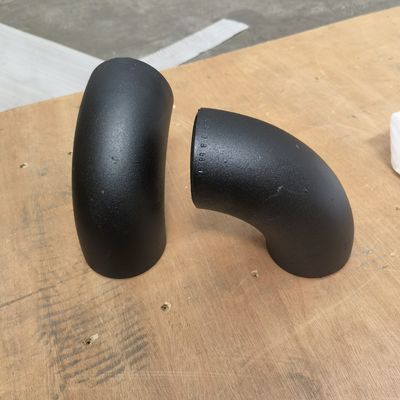

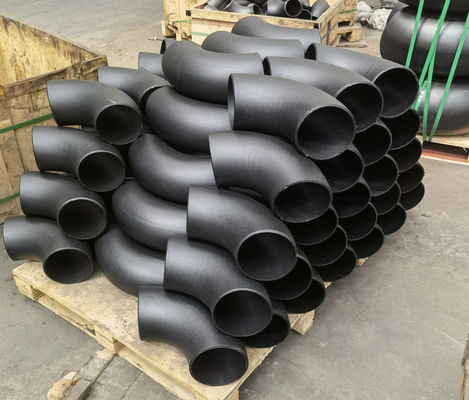

ANSI B 16.9 BUTT DILAS & mulus SCH10 SCH20 SCH40 SCH80 SCH100 SCH120 SCH160 XXS ELOBW
1. Bahan: 304, 304L, 321, 316, 316L, dll.
2. Standar: ASME, MSS, HG, DIN, JIS, GB
3. Jenis: Radius Panjang 90 derajat, Radius Pendek 90 derajat, Radius Panjang 45 derajat, Pita Pengembalian 180 derajat
Kami menawarkan Sanitary Fittings, Stainless Steel Sanitary Fittings, dan Stainless Steel Tube Fittings yang diproduksi menggunakan stainless steel kualitas optimal.Beragam tee stainless steel sanitasi kami dikenal di kalangan pelanggan karena kekuatan tariknya.Kelengkapan Tabung Baja ini dalam berbagai tingkatan dan penyelesaian sesuai kebutuhan.
Spesifikasi Siku Dilas Butt Stainless Steel:
| Spesifikasi | Tipe | Data |
| Ukuran | Radius Panjang / Pendek 90 derajat degree Radius Panjang 45 derajat |
Mulus 1/2 "-20" (DN15-DN500) Dilas 1/2 "-48" (DN15-DN1200) |
| Band Pengembalian 180 derajat degree | Mulus 1/2 "-4" (DN15-DN100) | |
| Ketebalan dinding | Radius Panjang / Pendek 90 derajat degree Radius Panjang 45 derajat |
SCH5S-SCH160 |
| Band Pengembalian 180 derajat degree | SCH5S-SCH80S | |
| Bahan | 304, 304L, 321, 316, 316L, dll. | |
| Standar | GB/T12459, GB/T13401, SH3408, SH3409, HG/T21635 | |
| HG/T21631, ASME B16.9, MSS SP-43, DIN 2605, JIS B2313 | ||
Jenis Butt Welded Stainless Steel Siku :
Parameter Teknis:
| Siku las butt ANSI B16.9 | ||||
| Diameter Nominal | Di luar
Diameter/mm |
Pusat ke Ujung/mm | ||
|

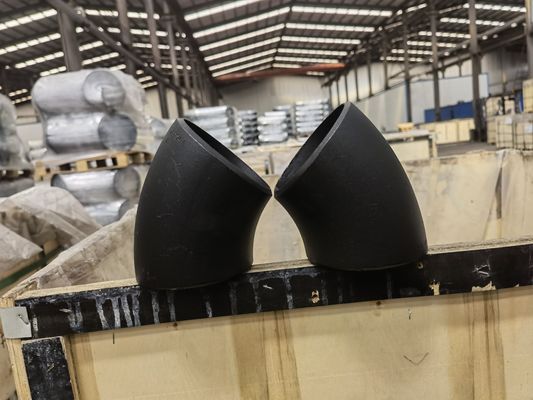

45 derajat siku
|
90 derajat siku | |||
| DN | OD | Radius Panjang | Radius Panjang | Radius Pendek |
| 1/2 | 21.3 | 15.7 | 38.1 | - |
| 3/4 | 26.7 | 19.1 | 38.1 | - |
| 1 | 33.4 | 22.4 | 38.1 | 25.4 |
| 1 1/4 | 42.2 | 25.4 | 47.8 | 31.8 |
| 1 1/2 | 48.3 | 28.4 | 57.2 | 38.1 |
| 2 | 60.3 | 35.1 | 76.2 | 50.8 |
| 2 1/2 | 73 | 44.5 | 95.3 | 63.5 |
| 3 | 88.9 | 50.8 | 114.3 | 76.2 |
| 3 1/2 | 101.6 | 57.2 | 133.4 | 88.9 |
| 4 | 114.3 | 63.5 | 152.4 | 101.6 |
| 5 | 141.3 | 79.2 | 190.5 | 127 |
| 5 | 168.3 | 95.3 | 228.6 | 152,4 |
| 8 | 219.1 | 127 | 304.8 | 203.2 |
| 10 | 273.1 | 158.8 | 381 | 254 |
| 12 | 323.9 | 190.5 | 457.2 | 304.8 |
| 14 | 355.6 | 222.3 | 533.4 | 355.6 |
| 16 | 406.4 | 254 | 609.6 | 406.4 |
| 18 | 457.2 | 285.8 | 685.8 | 457.2 |
| 20 | 508 | 317.5 | 762 | 508 |
| 22 | 558.8 | 342.9 | 838.2 | 558.8 |
| 24 | 609.6 | 381 | 914.4 | 609.6 |
Spesifikasi Siku Dilas Butt Stainless Steel:
| Spesifikasi | Tipe | Data |
| Ukuran | Radius Panjang / Pendek 90 derajat degree Radius Panjang 45 derajat |
Mulus 1/2 "-20" (DN15-DN500) Dilas 1/2 "-48" (DN15-DN1200) |
| Pita Pengembalian 180 derajat | Mulus 1/2 "-4" (DN15-DN100) | |
| Ketebalan dinding | Radius Panjang / Pendek 90 derajat degree Radius Panjang 45 derajat |
SCH5S-SCH160 |
| Band Pengembalian 180 derajat degree | SCH5S-SCH80S | |
| Bahan | 304, 304L, 321, 316, 316L, dll. | |
| Standar | GB/T12459, GB/T13401, SH3408, SH3409, HG/T21635 | |
| HG/T21631, ASME B16.9, MSS SP-43, DIN 2605, JIS B2313 | ||
