Detail produk:
|
| STANDATD: | AWWA C207-07 KELAS B DAN KELAS D | Ukuran: | 1/2 "-144" |
|---|---|---|---|
| Baja karbon: | S235JRG2, P245GH, P250GH, A105, SS400, SF440 DAN F304 F304L F316 F316L | Tekanan: | PN6 PN10 PN16 PN25 PN40 |
| Perlakukan Permukaan: | Minyak Anti Karat, Cat Kuning / Hitam, Seng, Galvanis yang dicelup panasHo | Pengepakan: | Tidak ada Fumigate atau Fumigate Plywood / Wood Pallet atau Case |
| Pemakaian: | Ladang Minyak, Lepas Pantai, Sistem Air, Pembuatan Kapal, Gas Alam, Tenaga Listrik, Proyek Pipa, dll | ||
| Cahaya Tinggi: | Ditempa P245GH FLANGE AWWA C207,P245GH FLANGE AWWA C207,S235JRG2 KELAS D P250GH FLANGE |
||

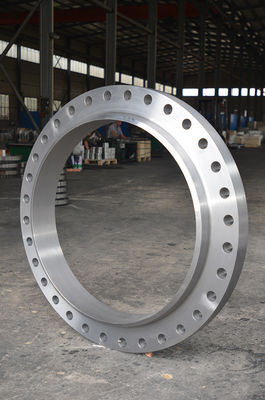

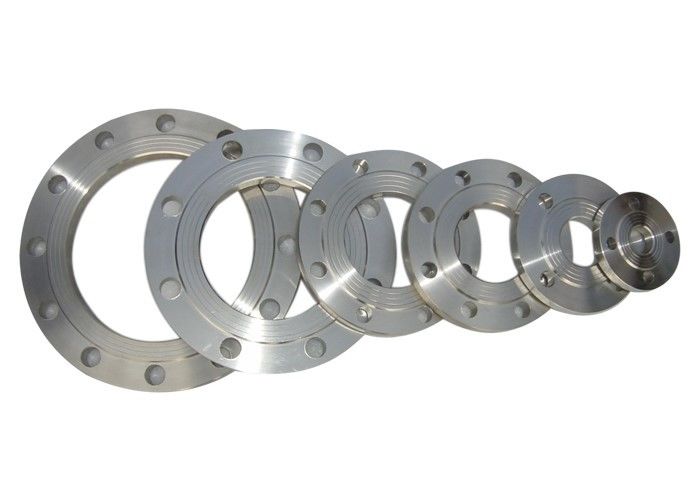

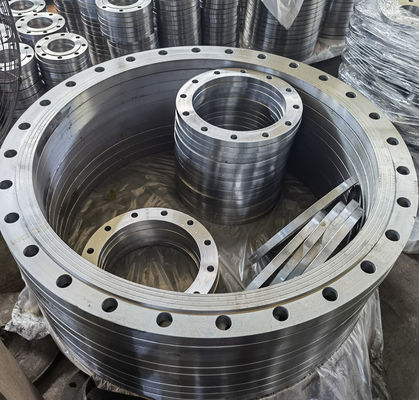

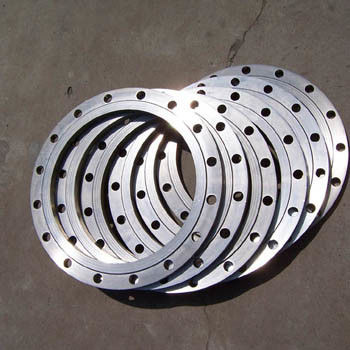

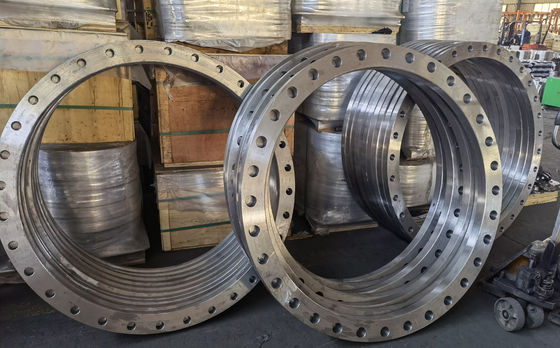

CINCIN DAN TIRAI tempa AWWA C207-07 KELAS B DAN KELAS D DENGAN MINYAK DAN GALVANIS PANAS
Bahan: Baja Karbon dan Baja Tahan Karat
Metode Produksi: Ditempa
Produsen Flange AWWA C207-07
Flensa Hub Baja Standar AWWA
Produsen Flange AWWA C207-94
Flensa Hub Baja Standar AWWA
| standar no. | ukuran | PN | Jenis | Bahan |
| AWWA C207 | 4″-144″ | Kelas B,D,E,FT/1 | PL | A105,A181 A36,
A516Gr.60,65,70 |
|
Ukuran Nom
|
|
Ketebalan
|
|
Pengeboran
|
Berat
|
||||
|
OD
|
Tergelincir
|
Buta
|
Membosankan
|
Lingkaran Baut
|
Lubang Dia
|
Tidak. Lubang
|
Tergelincir
|
Buta
|
|
|
A
|
T
|
T
|
B
|
C
|
|
|
|
|
|
|
4
|
9.00
|
0,625
|
0,625
|
4.57
|
7.50
|
0,750
|
8
|
8
|
11
|
|
5
|
10.00
|
0,625
|
0,625
|
5.66
|
8.50
|
0,875
|
8
|
9
|
14
|
|
6
|
11.00
|
0,688
|
0,688
|
6.72
|
9.50
|
0,875
|
8
|
11
|
19
|
|
8
|
13.50
|
0,688
|
0,688
|
8.72
|
11.75
|
0,875
|
8
|
15
|
28
|
|
10
|
16.00
|
0,688
|
0,688
|
10.88
|
14.25
|
1.000
|
12
|
19
|
39
|
|
12
|
19.00
|
0,688
|
0,719
|
12.88
|
17.00
|
1.000
|
12
|
28
|
58
|
|
14
|
21.00
|
0,688
|
0,791
|
14.19
|
18.75
|
1.125
|
12
|
34
|
78
|
|
16
|
23.50
|
0,688
|
0,892
|
16.19
|
21.25
|
1.125
|
16
|
41
|
110
|
|
18
|
25.00
|
0,688
|
0,950
|
18.19
|
22.75
|
1.250
|
16
|
41
|
132
|
|
20
|
27.50
|
0,688
|
1.040
|
20.19
|
25.00
|
1.250
|
20
|
49
|
175
|
|
22
|
29.50
|
0,750
|
1.132
|
22.19
|
27.25
|
1,375
|
20
|
57
|
219
|
|
24
|
32.00
|
0,750
|
1.216
|
24.19
|
29.50
|
1,375
|
20
|
67
|
277
|
|
26
|
34.25
|
0.812
|
1.307
|
26.19
|
31.75
|
1,375
|
24
|
80
|
341
|
|
28
|
36.50
|
0,875
|
1.398
|
28.19
|
34.00
|
1,375
|
28
|
94
|
414
|
|
30
|
38.75
|
0,875
|
1.477
|
30.19
|
36.00
|
1,375
|
28
|
105
|
493
|
|
32
|
41.75
|
0,936
|
1.581
|
32.19
|
38.50
|
1.625
|
28
|
132
|
613
|
|
34
|
43,75
|
0,938
|
1.661
|
34.19
|
40.50
|
1.625
|
32
|
137
|
707
|
|
36
|
46.00
|
1.000
|
1.751
|
36.19
|
42,75
|
1.625
|
32
|
161
|
824
|
|
38
|
48.75
|
1.000
|
1,853
|
38.19
|
45.25
|
1.625
|
32
|
185
|
980
|
|
40
|
50,75
|
1.000
|
1.933
|
40.19
|
47.25
|
1.625
|
36
|
193
|
1108
|
|
42
|
53.00
|
1.125
|
2.023
|
42.19
|
49.50
|
1.625
|
36
|
234
|
1264
|
|
44
|
55.25
|
1.125
|
2.114
|
44.19
|
51.75
|
1.625
|
40
|
249
|
1436
|
|
46
|
57.25
|
1.125
|
2.194
|
46.19
|
53,75
|
1.625
|
40
|
260
|
1600
|
|
48
|
59,50
|
1.250
|
2.285
|
48.19
|
56.00
|
1.625
|
44
|
306
|
1800
|
|
50
|
61.75
|
1.250
|
2.377
|
50.19
|
58.25
|
1,875
|
44
|
317
|
2017
|
|
52
|
64.00
|
1.250
|
2.468
|
52.19
|
60.50
|
1,875
|
44
|
339
|
2249
|
|
54
|
66.25
|
1,375
|
2.559
|
54.19
|
62,75
|
1,875
|
44
|
397
|
2499
|
|
60
|
73.00
|
1.500
|
2.820
|
60.19
|
69.25
|
1,875
|
52
|
508
|
3344
|
|
66
|
80.00
|
1.625
|
3.092
|
66.19
|
76.00
|
1,875
|
52
|
664
|
4403
|
|
72
|
86,50
|
1.750
|
3.353
|
72.19
|
82,50
|
1,875
|
60
|
802
|
5582
|
|
78
|
93.00
|
2.000
|
……..
|
78.19
|
89.00
|
2.125
|
64
|
1000
|
……..
|
|
84
|
99,75
|
2.000
|
……..
|
84.19
|
95.50
|
2.125
|
64
|
1145
|
……..
|
|
90
|
106,50
|
2.250
|
……..
|
90.19
|
102.00
|
2.438
|
68
|
1404
|
……..
|
|
96
|
113,25
|
2.250
|
……..
|
96.19
|
108.50
|
2.438
|
68
|
1586
|
……..
|
|
102
|
120.00
|
2.500
|
……..
|
102.19
|
114,50
|
2.688
|
72
|
1912
|
……..
|
|
108
|
126,75
|
2.500
|
……..
|
108.19
|
120,75
|
2.688
|
72
|
2136
|
……..
|
|
114
|
133,50
|
2.750
|
……..
|
114,19
|
126,75
|
2.938
|
76
|
2525
|
……..
|
|
120
|
140.25
|
2.750
|
……..
|
120.19
|
132,75
|
2.938
|
76
|
2795
|
……..
|
|
126
|
147.00
|
3.000
|
……..
|
126.19
|
139.25
|
3.188
|
80
|
3252
|
……..
|
|
132
|
153,75
|
3.000
|
……..
|
132.19
|
145,75
|
3.188
|
80
|
3572
|
……..
|
|
138
|
160.50
|
3.250
|
……..
|
138.19
|
152.00
|
3.438
|
84
|
4101
|
……..
|
|
144
|
167,25
|
3.250
|
……..
|
144.19
|
158.25
|
3.438
|
84
|
4475
|
……..
|
Dimensi dalam inci.Berat dalam pound.
Catatan: *Tingkat tekanan pada suhu atmosfer adalah 86 psi.Flensa ini memiliki OD dan pengeboran yang sama dengan flensa besi tuang ANSI/ASME B16.1 kelas 125.Dalam ukuran 24in.dan lebih kecil, mereka juga cocok dengan standar ANSI/ASME B16.5 150-psi untuk flensa baja.
|
Ukuran Nom
|
|
Ketebalan
|
|
Pengeboran
|
Berat
|
||||
|
OD
|
Tergelincir
|
Buta
|
Membosankan
|
Lingkaran Baut
|
Lubang Dia
|
Tidak ada lubang
|
Tergelincir
|
Buta
|
|
|
A
|
T
|
T
|
B
|
C
|
|
|
|
|
|
|
4
|
9.00
|
0,625
|
0,625
|
4.57
|
7.50
|
0,750
|
8
|
8
|
11
|
|
5
|
10.00
|
0,625
|
0,650
|
5.66
|
8.50
|
0,875
|
8
|
9
|
14
|
|
6
|
11.00
|
0,688
|
0,693
|
6.72
|
9.50
|
0,875
|
8
|
11
|
19
|
|
8
|
13.50
|
0,688
|
0.812
|
8.72
|
11.75
|
0,875
|
8
|
15
|
33
|
|
10
|
16.00
|
0,688
|
0,953
|
10.88
|
14.25
|
1.000
|
12
|
19
|
54
|
|
12
|
19.00
|
0.812
|
1.117
|
12.88
|
17.00
|
1.000
|
12
|
33
|
90
|
|
14
|
21.00
|
0,938
|
1.133
|
14.19
|
18.75
|
1.125
|
12
|
47
|
111
|
|
16
|
23.50
|
1.000
|
1.265
|
16.19
|
21.25
|
1.125
|
16
|
60
|
155
|
|
18
|
25.00
|
1.062
|
1.331
|
18.19
|
22.75
|
1.250
|
16
|
64
|
185
|
|
20
|
27.50
|
1.125
|
1,448
|
20.19
|
25.00
|
1.250
|
20
|
79
|
244
|
|
22
|
29.50
|
1.188
|
1.568
|
22.19
|
27.25
|
1,375
|
20
|
90
|
304
|
|
24
|
32.00
|
1.250
|
1.661
|
24.19
|
29.50
|
1,375
|
20
|
112
|
378
|
|
26
|
34.25
|
1.312
|
1.786
|
26.19
|
31.75
|
1,375
|
24
|
129
|
466
|
|
28
|
36.50
|
1.312
|
1.906
|
28.19
|
34.00
|
1,375
|
28
|
141
|
565
|
|
30
|
38.75
|
1,375
|
2.008
|
30.19
|
36.00
|
1,375
|
28
|
164
|
671
|
|
32
|
41.75
|
1.500
|
2.150
|
32.19
|
38.50
|
1.625
|
28
|
211
|
834
|
|
34
|
43,75
|
1.500
|
2.252
|
34.19
|
40.50
|
1.625
|
32
|
220
|
959
|
|
36
|
46.00
|
1.625
|
2.370
|
36.19
|
42,75
|
1.625
|
32
|
261
|
1116
|
|
38
|
48.75
|
1.625
|
2.506
|
38.19
|
45.25
|
1.625
|
32
|
301
|
1325
|
|
40
|
50,75
|
1.625
|
2.609
|
40.19
|
47.25
|
1.625
|
36
|
313
|
1438
|
|
42
|
53.00
|
1.750
|
2,729
|
42.19
|
49.50
|
1.625
|
36
|
364
|
1706
|
|
44
|
55.25
|
1.750
|
2.849
|
44.19
|
51.75
|
1.625
|
40
|
387
|
1935
|
|
46
|
57.25
|
1.750
|
2.952
|
46.19
|
53,75
|
1.625
|
40
|
404
|
2153
|
|
48
|
59,50
|
1,875
|
3.072
|
48.19
|
56.00
|
1.625
|
44
|
460
|
2420
|
|
50
|
61.75
|
2.000
|
3.196
|
50.19
|
58.25
|
1,875
|
44
|
507
|
2712
|
|
52
|
64.00
|
2.000
|
3.315
|
52.19
|
60.50
|
1,875
|
44
|
542
|
3021
|
|
54
|
66.25
|
2.125
|
3.435
|
54.19
|
62,75
|
1,875
|
44
|
614
|
3355
|
|
60
|
73.00
|
2.250
|
3.779
|
60.19
|
69.25
|
1,875
|
52
|
763
|
4481
|
|
66
|
80.00
|
2.500
|
4.136
|
66.19
|
76.00
|
1,875
|
52
|
1021
|
5890
|
|
72
|
86,50
|
2.625
|
4.480
|
72.19
|
82,50
|
1,875
|
60
|
1203
|
7458
|
|
78
|
93.00
|
2.750
|
……..
|
78.19
|
89.00
|
2.125
|
64
|
1374
|
……..
|
|
84
|
99,75
|
2.875
|
……..
|
84.19
|
95.50
|
2.125
|
64
|
1646
|
……..
|
|
90
|
106,50
|
3.000
|
……..
|
90.19
|
102.00
|
2.438
|
68
|
1872
|
……..
|
|
96
|
113,25
|
3.250
|
……..
|
96.19
|
108.50
|
2.438
|
68
|
2291
|
……..
|
|
102
|
120.00
|
3.250
|
……..
|
102.19
|
114,50
|
2.688
|
72
|
2485
|
…….
|
|
108
|
126,75
|
3.375
|
……..
|
108.19
|
120,75
|
2.688
|
72
|
2884
|
……..
|
|
114
|
133,50
|
3.500
|
……..
|
114,19
|
126,75
|
2.938
|
76
|
3214
|
……..
|
|
120
|
140.25
|
3.500
|
……..
|
120.19
|
132,75
|
2.938
|
76
|
3558
|
……..
|
|
126
|
147.00
|
3.750
|
……..
|
126.19
|
139.25
|
3.188
|
80
|
4065
|
……..
|
|
132
|
153,75
|
3,875
|
……..
|
132.19
|
145,75
|
3.188
|
80
|
4614
|
…….
|
|
138
|
160.50
|
4.000
|
……..
|
138.19
|
152.00
|
3.438
|
84
|
5047
|
……..
|
|
144
|
167,25
|
4.125
|
……..
|
144.19
|
158.25
|
3.438
|
84
|
5680
|
……..
|
Dimensi dalam inci.Berat dalam pound.
Catatan: *Tingkat tekanan pada suhu atmosfer: ukuran 4-12 inci inklusif, 175 psi;ukuran lebih besar dari 12 in., 150 psi.Flensa ini memiliki OD dan pengeboran yang sama dengan Flensa besi tuang ANSI/ASME B16.1 kelas 125.Dalam ukuran 24in.dan lebih kecil, mereka juga cocok dengan standar ANSI/ASME B16.5 150-psi untuk flensa baja.
|
Ukuran Nom
|
|
|
|
|
Pengeboran
|
|
|||
|
OD
|
Ketebalan
|
Ketebalan keseluruhan
|
Dia di Pangkalan
|
Membosankan
|
Lingkaran Baut
|
Lubang Dia
|
Tidak. Lubang
|
Berat
|
|
|
A
|
T
|
L |
E
|
B
|
C
|
|
|
|
|
|
4
|
9.00
|
0,500
|
0,875
|
5.312
|
4.57
|
7.50
|
0,750
|
8
|
7
|
|
5
|
10.00
|
0,562
|
1.250
|
6.312
|
5.66
|
8.50
|
0,875
|
8
|
9
|
|
6
|
11.00
|
0,562
|
1.250
|
7.562
|
6.72
|
9.50
|
0,875
|
8
|
11
|
|
8
|
13.50
|
0,562
|
1.250
|
9,688
|
8.72
|
11.75
|
0,875
|
8
|
15
|
|
10
|
16.00
|
0,688
|
1.250
|
12.000
|
10.88
|
14.25
|
1.000
|
12
|
22
|
|
12
|
19.00
|
0,688
|
1.250
|
14.375
|
12.88
|
17.00
|
1.000
|
12
|
33
|
|
14
|
21.00
|
0,750
|
1.250
|
15.750
|
14.19
|
18.75
|
1.125
|
12
|
43
|
|
16
|
23.50
|
0,750
|
1.250
|
18.000
|
16.19
|
21.25
|
1.125
|
16
|
52
|
|
18
|
25.00
|
0,750
|
1.250
|
19.875
|
18.19
|
22.75
|
1.250
|
16
|
52
|
|
20
|
27.50
|
0,750
|
1.250
|
22.000
|
20.19
|
25.00
|
1.250
|
20
|
61
|
|
22
|
29.50
|
1.000
|
1.750
|
24.250
|
22.19
|
27.25
|
1,375
|
20
|
92
|
|
24
|
32.00
|
1.000
|
1.750
|
26.125
|
24.19
|
29.50
|
1,375
|
20
|
105
|
|
26
|
34.25
|
1.000
|
1.750
|
28.500
|
26.19
|
31.75
|
1,375
|
24
|
119
|
|
28
|
36.50
|
1.000
|
1.750
|
30.500
|
28.19
|
34.00
|
1,375
|
28
|
130
|
|
30
|
38.75
|
1.000
|
1.750
|
32.500
|
30.19
|
36.00
|
1,375
|
28
|
144
|
|
32
|
41.75
|
1.125
|
1.750
|
34.750
|
32.19
|
38.50
|
1.625
|
28
|
182
|
|
34
|
43,75
|
1.125
|
1.750
|
36.750
|
34.19
|
40.50
|
1.625
|
32
|
191
|
|
36
|
46.00
|
1.125
|
1.750
|
38.750
|
36.19
|
42,75
|
1.625
|
32
|
207
|
|
38
|
48.75
|
1.125
|
1.750
|
40.750
|
38.19
|
45.25
|
1.625
|
32
|
237
|
|
40
|
50,75
|
1.125
|
1.750
|
43.000
|
40.19
|
47.25
|
1.625
|
36
|
249
|
|
42
|
53.00
|
1.250
|
1.750
|
45.000
|
42.19
|
49.50
|
1.625
|
36
|
287
|
|
44
|
55.25
|
1.250
|
2.250
|
47.000
|
44.19
|
51.75
|
1.625
|
40
|
334
|
|
46
|
57.25
|
1.250
|
2.250
|
49.000
|
46.19
|
53,75
|
1.625
|
40
|
348
|
|
48
|
59,50
|
1,375
|
2.500
|
51.000
|
48.19
|
56.00
|
1.625
|
44
|
407
|
|
50
|
61.75
|
1,375
|
2.500
|
53.000
|
50.19
|
58.25
|
1,875
|
44
|
421
|
|
52
|
64.00
|
1,375
|
2.500
|
55.000
|
52.19
|
60.50
|
1,875
|
44
|
448
|
|
54
|
66.25
|
1,375
|
2.500
|
57.000
|
54.19
|
62,75
|
1,875
|
44
|
475
|
|
60
|
73.00
|
1.500
|
2.750
|
63.000
|
60.19
|
69.25
|
1,875
|
52
|
605
|
|
66
|
80.00
|
1.500
|
2.750
|
69.000
|
66.19
|
76.00
|
1,875
|
52
|
718
|
|
72
|
86,50
|
1.500
|
2.750
|
75.000
|
72.19
|
82,50
|
1,875
|
60
|
803
|
|
78
|
93.00
|
1.750
|
3.000
|
81.250
|
78.19
|
89.00
|
2.125
|
64
|
1010
|
|
84
|
99,75
|
1.750
|
3.000
|
87.500
|
84.19
|
95.50
|
2.125
|
64
|
1160
|
|
90
|
106,50
|
2.000
|
3.250
|
93.750
|
90.19
|
102.00
|
2.438
|
68
|
1430
|
|
96
|
113,25
|
2.000
|
3.250
|
100.000
|
96.19
|
108.50
|
2.438
|
68
|
1618
|
Dimensi dalam inci.Berat dalam pound.
Catatan: Flensa hub digunakan pada pipa yang memiliki OD sama dengan ukuran pipa nominal pada kolom pertama.*Tingkat tekanan pada suhu atmosfer: ukuran 4-12 inci inklusif, 175 psi;ukuran lebih besar dari 12 in., 150 psi.Flensa ini memiliki OD dan pengeboran yang sama dengan flensa besi tuang ANSI/ASME B16.1 kelas 125.Dalam ukuran 24in.dan lebih kecil, mereka juga cocok dengan standar ANSI/ASME B16.5 150-psi untuk Flensa baja.
|
Ukuran Nom
|
|
Ketebalan
|
|
Pengeboran
|
Berat
|
||||
|
OD
|
Tergelincir
|
Buta
|
Membosankan
|
Lingkaran Baut
|
Lubang Dia
|
Tidak. Lubang
|
Tergelincir
|
Buta
|
|
|
A
|
T
|
T
|
B
|
C
|
|
|
|
|
|
|
4
|
9.00
|
1.125
|
1.125
|
4.57
|
7.50
|
0,750
|
8
|
14
|
20
|
|
5
|
10.00
|
1.188
|
1.188
|
5.66
|
8.50
|
0,875
|
8
|
16
|
26
|
|
6
|
11.00
|
1.313
|
1.313
|
6.72
|
9.50
|
0,875
|
8
|
20
|
35
|
|
8
|
13.50
|
1.500
|
1.500
|
8.72
|
11.75
|
0,875
|
8
|
33
|
61
|
|
10
|
16.00
|
1.563
|
1.563
|
10.88
|
14.25
|
1.000
|
12
|
44
|
89
|
|
12
|
19.00
|
1.750
|
1.750
|
12.88
|
17.00
|
1.000
|
12
|
71
|
141
|
|
14
|
21.00
|
1,875
|
1,875
|
14.19
|
18.75
|
1.125
|
12
|
94
|
184
|
|
16
|
23.50
|
2.000
|
2.000
|
16.19
|
21.25
|
1.125
|
16
|
120
|
246
|
|
18
|
25.00
|
2.125
|
2.125
|
18.19
|
22.75
|
1.250
|
16
|
127
|
296
|
|
20
|
27.50
|
2.375
|
2.375
|
20.19
|
25.00
|
1.250
|
20
|
168
|
400
|
|
22
|
29.50
|
2.500
|
2.500
|
22.19
|
27.25
|
1,375
|
20
|
189
|
484
|
|
24
|
32.00
|
2.625
|
2.625
|
24.19
|
29.50
|
1,375
|
20
|
234
|
598
|
|
26
|
34.25
|
2.750
|
2.750
|
26.19
|
31.75
|
1,375
|
24
|
270
|
718
|
|
28
|
36.50
|
2.750
|
2.750
|
28.19
|
34.00
|
1,375
|
28
|
297
|
815
|
|
30
|
38.75
|
2.875
|
2.875
|
30.19
|
36.00
|
1,375
|
28
|
344
|
961
|
|
32
|
41.75
|
3.000
|
3.000
|
32.19
|
38.50
|
1.625
|
28
|
422
|
1163
|
|
34
|
43,75
|
3.000
|
3.050
|
34.19
|
40.50
|
1.625
|
32
|
441
|
1299
|
|
36
|
46.00
|
3.125
|
3.209
|
36.19
|
42,75
|
1.625
|
32
|
502
|
1511
|
|
38
|
48.75
|
3.125
|
3.394
|
38.19
|
45.25
|
1.625
|
32
|
580
|
1795
|
|
40
|
50,75
|
3.250
|
3.533
|
40.19
|
47.25
|
1.625
|
36
|
626
|
2025
|
|
42
|
53.00
|
3.375
|
3.695
|
42.19
|
49.50
|
1.625
|
36
|
701
|
2309
|
|
44
|
55.25
|
3.375
|
3.857
|
44.19
|
51.75
|
1.625
|
40
|
747
|
2715
|
|
46
|
57.25
|
3.438
|
3.997
|
46.19
|
53,75
|
1.625
|
40
|
794
|
2813
|
|
48
|
59,50
|
3.500
|
4.159
|
48.19
|
56.00
|
1.625
|
44
|
858
|
3276
|
|
50
|
61.75
|
3.500
|
4.327
|
50.19
|
58.25
|
1,875
|
44
|
887
|
3671
|
|
52
|
64.00
|
3.625
|
4.489
|
52.19
|
60.50
|
1,875
|
44
|
982
|
4091
|
|
54
|
66.25
|
3.750
|
4.651
|
54.19
|
62,75
|
1,875
|
44
|
1083
|
4542
|
|
60
|
73.00
|
3,875
|
5.116
|
60.19
|
69.25
|
1,875
|
52
|
1313
|
6066
|
|
66
|
80.00
|
4.250
|
5.601
|
66.19
|
76.00
|
1,875
|
52
|
1736
|
7976
|
|
72
|
86,50
|
4.375
|
6.066
|
72.19
|
82,50
|
1,875
|
60
|
2005
|
10099
|
|
78
|
93.00
|
4.750
|
……..
|
78.19
|
89.00
|
2.125
|
64
|
2374
|
……..
|
|
84
|
99,75
|
4.750
|
……..
|
84.19
|
95.50
|
2.125
|
64
|
2719
|
……..
|
|
90
|
106,50
|
5.125
|
……..
|
90.19
|
102.00
|
2.438
|
68
|
3197
|
……..
|
|
96
|
113,25
|
5.125
|
……..
|
96.19
|
108.50
|
2.438
|
68
|
3613
|
……..
|
|
102
|
120.00
|
5.500
|
……..
|
102.19
|
114,50
|
2.688
|
72
|
4206
|
……..
|
|
108
|
126,75
|
5.500
|
……..
|
108.19
|
120,75
|
2.688
|
72
|
4700
|
……..
|
|
114
|
133,50
|
5.875
|
……..
|
114,19
|
126,75
|
2.938
|
76
|
5395
|
……..
|
|
120
|
140.25
|
5.875
|
……..
|
120.19
|
132,75
|
2.938
|
76
|
5972
|
……..
|
|
126
|
147.00
|
6.250
|
……..
|
126.19
|
139.25
|
3.188
|
80
|
6775
|
……..
|
|
132
|
153,75
|
6.250
|
……..
|
132.19
|
145,75
|
3.188
|
80
|
7442
|
……..
|
|
138
|
160.50
|
6.750
|
……..
|
138.19
|
152.00
|
3.438
|
84
|
8517
|
……..
|
|
144
|
167,25
|
6.750
|
……..
|
144.19
|
158.25
|
3.438
|
84
|
9295
|
……..
|
Dimensi dalam inci.Berat dalam pound.
Catatan: *Tingkat tekanan pada suhu atmosfer adalah 275 psi.Flensa ini memiliki OD dan pengeboran yang sama dengan flensa besi tuang ANSI/ASME B16.1 kelas 125.Dalam ukuran 24in.dan lebih kecil, mereka juga cocok dengan standar ANSI/ASME B16.5 150-psi untuk flensa baja.
|
Ukuran Nom
|
|
|
|
|
Pengeboran
|
|
|||
|
OD
|
Ketebalan
|
Ketebalan keseluruhan
|
Dia di Pangkalan
|
Membosankan
|
Lingkaran Baut
|
Lubang Dia
|
Tidak. Lubang
|
Berat
|
|
|
A
|
T
|
L
|
E
|
B
|
C
|
|
|
|
|
|
4
|
9.00
|
0,938
|
1.312
|
5.312
|
4.57
|
7.50
|
0,750
|
8
|
13
|
|
5
|
10.00
|
0,938
|
1.438
|
6.438
|
5.66
|
8.50
|
0,875
|
8
|
14
|
|
6
|
11.00
|
1.000
|
1.562
|
7.562
|
6.72
|
9.50
|
0,875
|
8
|
17
|
|
8
|
13.50
|
1.125
|
1.750
|
9,688
|
8.72
|
11.75
|
0,875
|
8
|
28
|
|
10
|
16.00
|
1.188
|
1.938
|
12.000
|
10.88
|
14.25
|
1.000
|
12
|
37
|
|
12
|
19.00
|
1.250
|
2.188
|
14.375
|
12.88
|
17.00
|
1.000
|
12
|
59
|
|
14
|
21.00
|
1,375
|
2.250
|
15.750
|
14.19
|
18.75
|
1.125
|
12
|
78
|
|
16
|
23.50
|
1.438
|
2.500
|
18.000
|
16.19
|
21.25
|
1.125
|
16
|
101
|
|
18
|
25.00
|
1.562
|
2.688
|
19.875
|
18.19
|
22.75
|
1.250
|
16
|
110
|
|
20
|
27.50
|
1.688
|
2.875
|
22.000
|
20.19
|
25.00
|
1.250
|
20
|
139
|
|
22
|
29.50
|
1.812
|
3.125
|
24.000
|
22.19
|
27.25
|
1,375
|
20
|
162
|
|
24
|
32.00
|
1,875
|
3.250
|
26.125
|
24.19
|
29.50
|
1,375
|
20
|
197
|
|
26
|
34.25
|
2.000
|
3.375
|
28.500
|
26.19
|
31.75
|
1,375
|
24
|
235
|
|
28
|
36.50
|
2.062
|
3.438
|
30.750
|
28.19
|
34.00
|
1,375
|
28
|
269
|
|
30
|
38.75
|
2.125
|
3.500
|
32.750
|
30.19
|
36.00
|
1,375
|
28
|
303
|
|
32
|
41.75
|
2.250
|
3.625
|
35.000
|
32.19
|
38.50
|
1.625
|
28
|
375
|
|
34
|
43,75
|
2.312
|
3.688
|
37.000
|
34.19
|
40.50
|
1.625
|
32
|
401
|
|
36
|
46.00
|
2.375
|
3.750
|
39.250
|
36.19
|
42,75
|
1.625
|
32
|
452
|
|
38
|
48.75
|
2.375
|
3.750
|
41.750
|
38.19
|
45.25
|
1.625
|
32
|
528
|
|
40
|
50,75
|
2.500
|
3,875
|
43.750
|
40.19
|
47.25
|
1.625
|
36
|
573
|
|
42
|
53.00
|
2.625
|
4.000
|
46.000
|
42.19
|
49.50
|
1.625
|
36
|
648
|
|
44
|
55.25
|
2.625
|
4.000
|
48.000
|
44.19
|
51.75
|
1.625
|
40
|
688
|
|
46
|
57.25
|
2.688
|
4.062
|
50.000
|
46.19
|
53,75
|
1.625
|
40
|
733
|
|
48
|
59,50
|
2.750
|
4.125
|
52.250
|
48.19
|
56.00
|
1.625
|
44
|
799
|
|
50
|
61.75
|
2.750
|
4.125
|
54.250
|
50.19
|
58.25
|
1,875
|
44
|
827
|
|
52
|
64.00
|
2.875
|
4.250
|
56.500
|
52.19
|
60.50
|
1,875
|
44
|
922
|
|
54
|
66.25
|
3.000
|
4.375
|
58.750
|
54.19
|
62,75
|
1,875
|
44
|
1024
|
|
60
|
73.00
|
3.125
|
4.500
|
65.250
|
60.19
|
69.25
|
1,875
|
52
|
1253
|
|
66
|
80.00
|
3.375
|
4.875
|
71.500
|
66.19
|
76.00
|
1,875
|
52
|
1623
|
|
72
|
86,50
|
3.500
|
5.000
|
78.500
|
72.19
|
82,50
|
1,875
|
60
|
1922
|
|
78
|
93.00
|
3,875
|
5.375
|
84.500
|
78.19
|
89.00
|
2.125
|
64
|
2279
|
|
84
|
99,75
|
3,875
|
5.375
|
90.500
|
84.19
|
95.50
|
2.125
|
64
|
2586
|
|
90
|
106,50
|
4.250
|
5.750
|
96.750
|
90.19
|
102.00
|
2.438
|
68
|
3061
|
|
96
|
113,25
|
4.250
|
5.750
|
102.750
|
96.19
|
108.50
|
2.438
|
68
|
3432
|
Dimensi dalam inci.Berat dalam pound.
Catatan: Flensa hub digunakan pada pipa yang memiliki OD sama dengan ukuran pipa nominal pada kolom pertama.* Peringkat tekanan pada suhu atmosfer adalah 275 psi.Flensa ini memiliki OD dan pengeboran yang sama dengan flensa besi tuang ANSI/ASME B16.1 kelas 125.Dalam ukuran 24in.dan lebih kecil, mereka juga cocok dengan standar ANSI/ASME B16.5 class 150 untuk flensa baja.Ketebalan sayap kelas 150 dari mana permukaan yang terangkat telah dihilangkan harus tidak kurang dari dimensi T dikurangi 0,06 in.
|
Ukuran Nom
|
|
Ketebalan
|
|
Pengeboran
|
Berat
|
||||
|
OD
|
Tergelincir
|
Buta
|
Membosankan
|
Lingkaran Baut
|
Lubang Dia
|
Tidak. Lubang
|
Tergelincir
|
Buta
|
|
|
A
|
T
|
T
|
B
|
C
|
|
|
|
|
|
|
4
|
10.00
|
1.130
|
1.130
|
4.57
|
7.88
|
0,875
|
8
|
18
|
25
|
|
5
|
11.00
|
1.210
|
1.210
|
5.66
|
9.25
|
0,875
|
8
|
22
|
33
|
|
6
|
12.50
|
1.310
|
1.310
|
6.73
|
10.62
|
0,875
|
12
|
30
|
46
|
|
8
|
15.00
|
1.310
|
1.310
|
8.73
|
13.00
|
1.000
|
12
|
40
|
66
|
|
10
|
17.50
|
1.500
|
1.500
|
10.88
|
15.25
|
1.125
|
16
|
56
|
102
|
|
12
|
20.50
|
1.630
|
1.630
|
12.88
|
17.75
|
1.250
|
16
|
83
|
152
|
|
14
|
23.00
|
1.940
|
1.940
|
14.19
|
20.25
|
1.250
|
20
|
128
|
228
|
|
16
|
25.50
|
2.140
|
2.140
|
16.19
|
22.50
|
1,375
|
20
|
167
|
310
|
|
18
|
28.00
|
2.250
|
2.250
|
18.19
|
24,75
|
1,375
|
24
|
204
|
392
|
|
20
|
30.50
|
2.330
|
2.330
|
20.19
|
27.00
|
1,375
|
24
|
247
|
482
|
|
22
|
33.00
|
2.500
|
2.500
|
22.19
|
29.25
|
1,375
|
24
|
307
|
606
|
|
24
|
36.00
|
2.690
|
2.690
|
24.19
|
32.00
|
1.625
|
24
|
388
|
776
|
|
26
|
38.25
|
3.000
|
3.000
|
26.19
|
34.50
|
1,875
|
28
|
451
|
977
|
|
28
|
40,75
|
3.130
|
3.130
|
28.19
|
37.00
|
1,875
|
28
|
532
|
1156
|
|
30
|
43.00
|
3.150
|
3.166
|
30.19
|
39.25
|
1,875
|
28
|
586
|
1303
|
|
32
|
45.25
|
3.250
|
3.332
|
32.19
|
41.50
|
1,875
|
28
|
657
|
1518
|
|
34
|
47.50
|
3.380
|
3.475
|
34.19
|
43.50
|
1,875
|
28
|
741
|
1745
|
|
36
|
50.00
|
3.460
|
3.671
|
36.19
|
46.00
|
2.125
|
32
|
802
|
2042
|
|
38
|
52.25
|
3.500
|
3.815
|
38.19
|
48.00
|
2.125
|
32
|
874
|
2317
|
|
40
|
54.25
|
3.630
|
3,982
|
40.19
|
50.25
|
2.125
|
36
|
937
|
2608
|
|
42
|
57.00
|
3.810
|
4.171
|
42.19
|
52.75
|
2.125
|
36
|
1103
|
3015
|
|
44
|
59.25
|
4.000
|
4.338
|
44.19
|
55.00
|
2.125
|
36
|
1237
|
3388
|
|
46
|
61.50
|
4.130
|
4.505
|
46.19
|
57.25
|
2.125
|
40
|
1344
|
3791
|
|
48
|
65.00
|
4.500
|
4.781
|
48.19
|
60,75
|
2.125
|
40
|
1718
|
4494
|
Dimensi dalam inci.Berat dalam pound.
Catatan: *Tingkat tekanan pada suhu atmosfer adalah 300 psi.Flensa ini memiliki OD dan pengeboran yang sama dengan pipa besi cor ANSI/ASME B16.1 class 250 dan fitting flensa.
Kontak Person: Miss. Mandy Liu
Tel: 0086 18903173335
Faks: 86-0317-6853077-6723871
