Detail produk:
|
| produk: | Fitting pipa las Butt mulus baja | Standar: | ASME B16.9/B16.28 |
|---|---|---|---|
| Jenis pas: | Siku, Tee, Peredam, Tutup, Salib | Bahan: | Baja Karbon ASTM A234WPB, Baja Tahan Karat SS304, SS316, SS321 |
| ketebalan dinding: | Sch 5, sch10, STD, sch20, sch30, sch40 XS, sch60, sch80, sch100, sch120, sch160, sch xxs | Lapisan permukaan: | Lapisan cat hitam, lapisan minyak tahan karat, lapisan galvanis dingin dan galvanis |
| Cahaya Tinggi: | Steel Fitting asme b16 9 elbow,Butt Welding asme b16 9 elbow,B16.28 Elbow Tee Reducer |
||
BAJA FITTING ASME B16.9 / B16.28

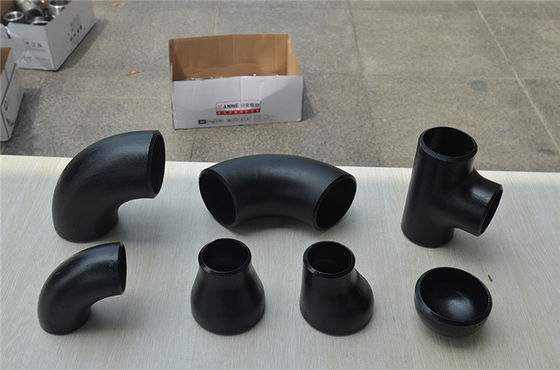

Siku Tee Reducer Bend Cross Saddle Butt WeldingASTM A234WPB
| Standar | ASME B16.9 / B16.28 |
| Jenis pas |

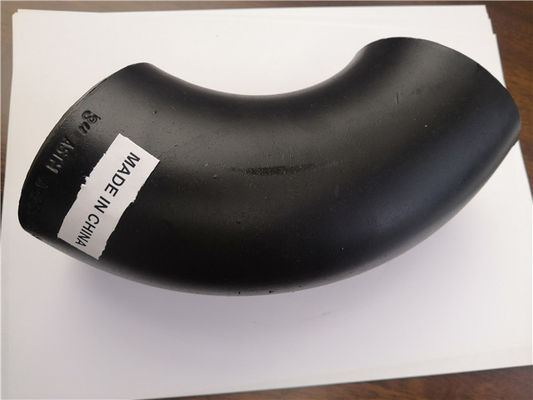

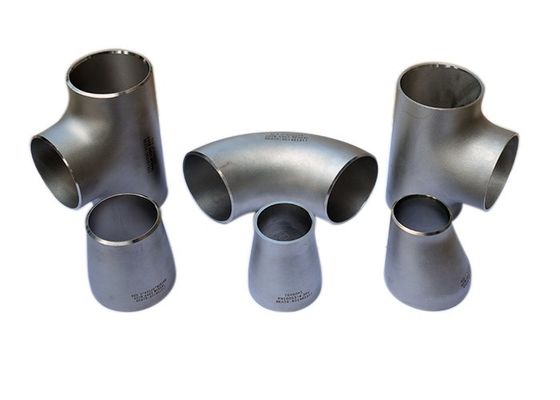

Elbow LR ( raidus panjang) SR (radius pendek) 45/60/90/180DEG; 3D/5D Tikungan 45DEG/90DEG;Tee, Tee sama, Tee pereduksi, silang, sadel;Reducer Peredam konsentris, peredam eksentrik, Tutup ujung pipa |
| ketebalan dinding |
SCH5, SC5S, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, XS, SCH60, SCH80, SCH100, SCH120, SCH160, SCH XXS |
| Kisaran ukuran | 1/2 "sampai 24" tipe mulus;4 "- 72" tipe dijalin |
| Untuk m | mulus dan berbelit-belit |
| Bahan |
baja karbon ASTM A234 WPB, WP9, ASTM A420 Gr.WPL6, ASTM A105, ASTM A694 F42-F70 |
| baja tahan karat ASTM A403 WP304/304L;WP316/316L;WP321;DIN1.4301;DIN1.4306;DIN1.4401;DIN 1.4404 | |

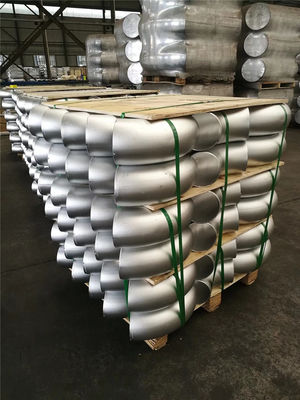

| Pengepakan | kotak karton untuk ukuran kecil hingga 2 ", kotak kayu lapis atau palet layak laut |
STANDAR KETEBALAN DINDING BAJA KARBON Tempa
| Ukuran Pipa Nominal | Diameter luar | Ketebalan Dinding Nominal | |||||||||||||||||
| SEBUAH | B | SEPERTI SAYA | JIS | KERIUHAN | JIS(1) | DIN(2) | SCH10 | SCH20 | SCH30 | penyakit menular seksual | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 | XXS |
| 15 | 1/2" | 21.3 | 21.7 | 21.3 | 2.8 | 2.0 | 2.11 | 2.41 | 2.77 | 2.77 | 3.73 | 3.73 | 4.78 | 7.47 | |||||
| 20 | 3/4" | 26.7 | 27.2 | 26.9 | 2.8 | 2.3 | 2.11 | 2.41 | 2.87 | 2.87 | 3.91 | 3.91 | 5.56 | 7.82 | |||||
| 25 | 1" | 33.4 | 34.0 | 33.7 | 3.2 | 2.6 | 2.77 | 2.90 | 3.38 | 3.38 | 4.55 | 4.55 | 6.35 | 9.09 | |||||
| 32 | 1 1/4" | 422 | 42,7 | 42.4 | 3.5 | 2.6 | 2.77 | 297 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | 9.70 | |||||
| 40 | 1 1/2" | 48.3 | 48.6 | 48.3 | 3.5 | 2.9 | 2.77 | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | 10.15 | |||||
| 50 | 2" | 60.3 | 60.5 | 60.3 | 3.8 | 2.9 | 2.77 | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | 11.07 | |||||
| 65 | 2 1/2" | 73.0 | 76.3 | 76.1 | 4.2 | 2.9 | 3.05 | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | 14.02 | |||||
| 80 | 3" | 88.9 | 89.1 | 88.9 | 4.2 | 3.2 | 3.05 | 4.78 | 5.49 | 5.49 | 7.62 | 7.62 | 11.13 | 15.24 | |||||
| 90 | 3-1/2" | 101.6 | 101.6 | — | 4.2 | — | 3.05 | 4.78 | 5.74 | 5.74 | 8.08 | 8.08 | - | — | |||||
| 100 | 4" | 114.3 | 114.3 | 114.3 | 4,5 | 3.6 | 3.05 | 4.78 | 6.02 | 6.02 | 8.56 | 8.56 | 11.13 | 13.49 | 17.12 | ||||
| 125 | 5" | 141.3 | 139.8 | 139.7 | 4,5 | 4.0 | 3.40 | - | 6.55 | 6.55 | 9.53 | 9.53 | 12.70 | 15,99 | 19.05 | ||||
| 150 | 6" | 168.3 | 165.2 | 168.3 | 5.0 | 4,5 | 3.40 | 4,5 | - | 7.11 | 7.11 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | |||
| 200 | 8" | 219.1 | 216.3 | 219.1 | 5.8 | 6.3 | 376 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.70 | 12.70 | 1509 | 18.26 | 20.62 | 23.01 | 22.23 |
| 250 | 10" | 273.1 | 267.4 | 273.0 | 6.6 | 6.3 | 4.19 | 6.35 | 7.80 | 9.27 | 9.27 | 12.70 | 12.70 | 15.09 | 18.26 | 21.44 | 25.40 | 28.58 | 25.40 |
| 300 | 12" | 323.9 | 328.9 | 323.9 | 6.9 | 7.1 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.70 | 17.48 | 21.44 | 25.40 | 28.58 | 33.32 | 25.40 |
| 350 | 14" | 355.6 | 355.6 | 355.6 | 7.9 | 8.0 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.70 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | |
| 400 | 16" | 406.4 | 406.4 | 406.4 | 7.9 | 8.8 | 6.35 | 7.92 | 9.53 | 9.53 | 12.70 | 16.66 | 12.70 | 21.44 | 26.19 | 30.96 | 36.53 | 40.49 | |
| 450 | 18" | 457.2 | 457.2 | 457.0 | 7.9 | 10.0 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.70 | 23.83 | 29.36 | 34.93 | 39.67 | 45.24 | |
| 500 | 20" | 508.0 | 508.0 | 508.0 | 7.9 | 11.0 | 6.35 | 9.53 | 1270 | 9.53 | 15.09 | 20.62 | 12.70 | 26.19 | 32.54 | 38.10 | 44.45 | 50,01 | |
| 550 | 22" | 558.8 | 558.8 | - | - | 6.35 | 9.53 | 12.70 | 9.53 | - | 2223 | 12.70 | 2858 | 34.93 | 41.28 | 47.63 | 53,98 | ||
| 600 | 24" | 609.6 | 609.6 | 610.0 | 12.5 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.70 | 30.96 | 38.89 | 46.02 | 52.37 | 59,54 | ||
| 650 | 26" | 660,4 | 660,4 | - | - | 7.92 | 12.70 | - | 9.53 | - | 12.70 | - | 一 | - | - | - | |||
| 700 | 28" | 711.1 | 711.2 | 711.0 | 125 | 7.92 | 1270 | 15.88 | 9.53 | — | 12.70 | ||||||||
| 750 | 30" | 762.0 | 762.0 | - | — | 7.92 | 12.70 | 15.88 | 9.53 | — | 12.70 | — | - | — | - | ||||
| 800 | 32" | 812.8 | 812.8 | 813.0 | 12.5 | 7.92 | 12.70 | 15.88 | 9.53 | 17.48 | 12.70 | - | |||||||
| 850 | 34" | 863.6 | 863.6 | — | - | 7.92 | 12.70 | 15.88 | 9.53 | 17.48 | 12.70 | — | JIS G34525 ASME B36.10M JIS G3454 DIN2448 JIS G3455 DIN2458 JISG3457 | ||||||
| 900 | 36" | 914.4 | 914.4 | 914.0 | 12.5 | 7.92 | 12.70 | 15.88 | 9.53 | 19.05 | 12.70 | — | |||||||
| 950 | 38" | 965.2 | 965.2 | - | - | — | — | — | 9.53 | — | 12.70 | - | |||||||
| 1000 | 40" | 1016.0 | 1016.0 | 1016.0 | 12.5 | - | - | - | 9.53 | - | 12.70 | - | |||||||
| 1050 | 42" | 1066.8 | 1066.8 | - | - | - | - | - | 9.53 | - | 12.70 | - | |||||||
| 1100 | 44" | 1117,6 | 1117,6 | - | - | - | - | - | 9.53 | - | 12.70 | - | - | - | - | - | |||
| 1150 | 46" | 1168.4 | 1168.4 | - | - | - | - | - | 9.53 | - | 1270 | - | - | - | - | 一 | |||
| 1200 | 48" | 1219.2 | 1219.2 | 1220.0 | - | - | - | - | 9.53 | - | 12.70 | - | - | - | - | - | |||
-------------------------------------------------- -------------------------------------------------- -------------------------------------------------- ------------------------------------
