Detail produk:
|

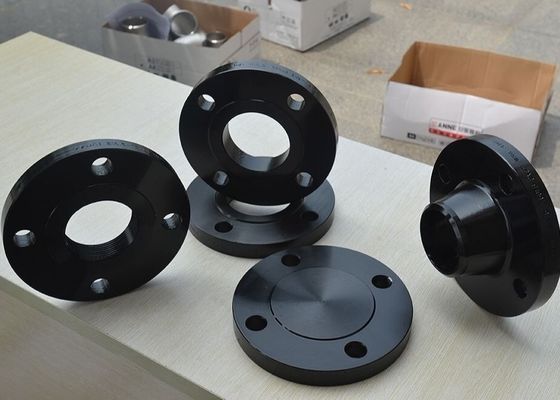

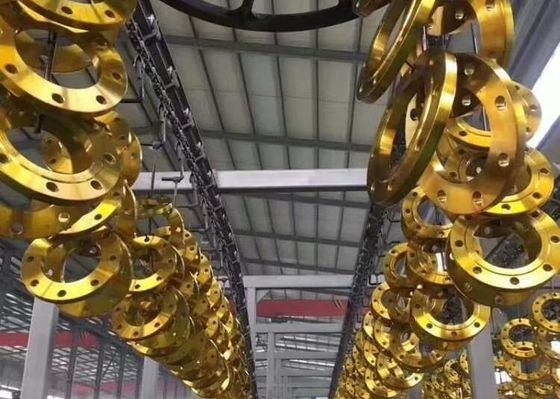

| UKURAN: | 1/2" SAMPAI 80", 0,5 INCI SAMPAI 80 INCI | PENGOBATAN PERMUKAAN: | LUKISAN HITAM, LUKISAN KUNING, GALVANISING, MINYAK ANTI KARAT |
|---|---|---|---|
| FLANGE WAJAH SEGEL: | WAJAH NAIK (RF), WAJAH DATA (FF), JENIS BERSAMA CINCIN (RTJ) | Kemasan: | Kasing / palet kayu lapis yang layak untuk laut |
| Istilah Harga: | FOB, CIF, CFR | Periode produksi: | kurang dari 60 ton dalam 30 hari, lebih dari 60 ton 50 hari |
| Sertifikat: | PED, ISO | BAHAN: | STAINLESS STEEL SS316/L SS304/L |
| STANDAR: | ANSI B16.5, ANSI B16.47A, ANSI B16.47B, AWWA KELAS D, D | JENIS FLANGE: | N FLANGE, SO FLANGE, BLIND FLANGE, SW FLANGE, PLATE FLANGE, LAP JOINT FLANGE |
| Cahaya Tinggi: | wnrf flensa baja karbon ditempa,flensa baja karbon sorf ditempa,flensa baja karbon a350 lf2 ditempa |
||
FLANGE ANSI B16.5 ASME B16.47 Ser.A FLANGE CARBON STEEL FLANGE 150LB-2500LB FLANGE SORF WNRF FLANGE
| UKURAN | BAHAN | JENIS FLANGE |

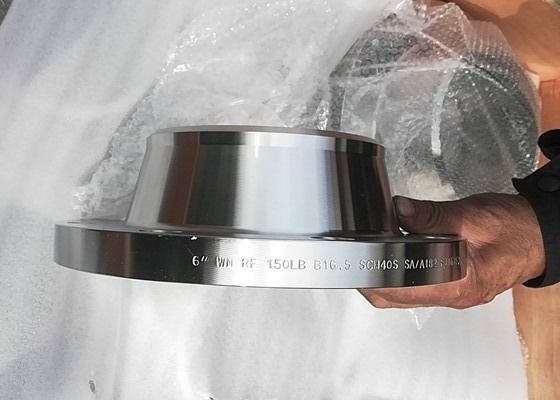

| 1/2 "-80" | Besi tahan karat | flensa leher las |

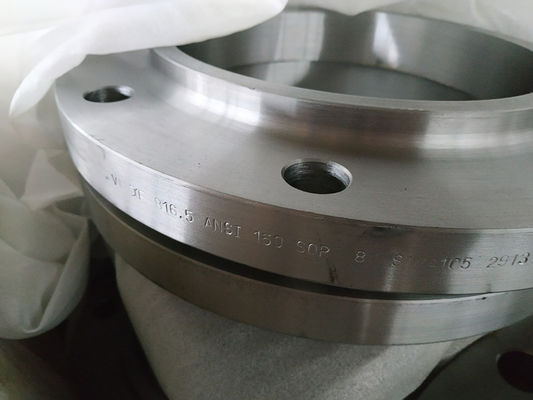

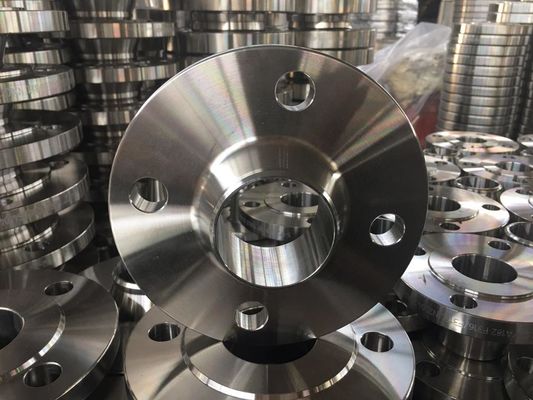

| Slip pada Flange | ||

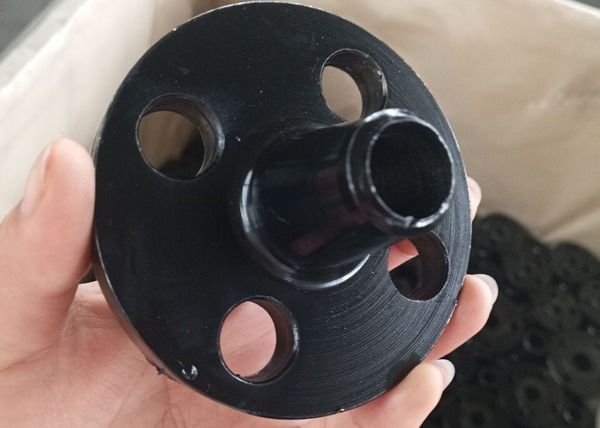

| flensa las soket | ||
| Flensa Sambungan LAP | ||

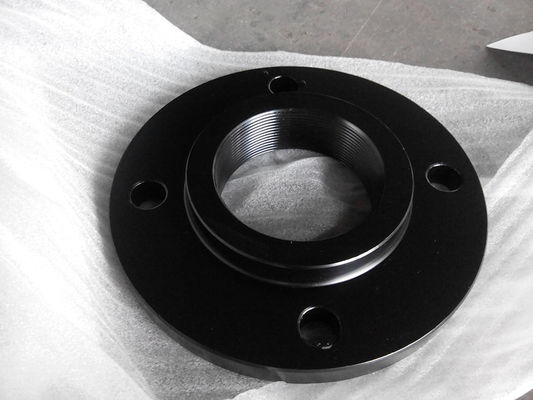

| Flensa berulir | ||

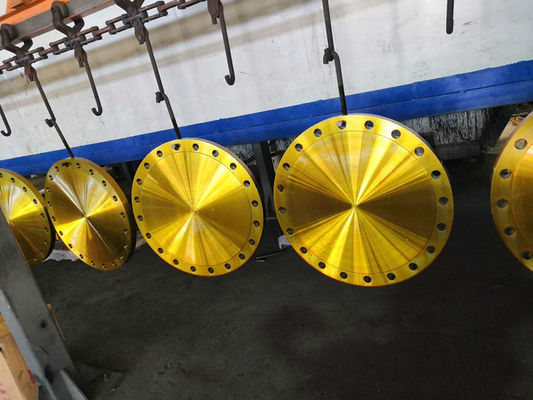

| tutup katup | ||
| BAJA KARBON, BAJA STAINLESS | flensa leher las | |
| Slip pada Flange | ||
| flensa las soket | ||
| Flensa Sambungan LAP | ||
| Flensa berulir | ||
| tutup katup | ||
| Wajah penyegelan flensa | RF dengan hasil akhir bergerigi | |
| FF dengan 3 garis air | ||
| FF dengan hasil akhir yang halus | ||
| RTJ (Jenis Sambungan Cincin) | ||
| FF dengan finishing bergerigi | ||
| RF dengan saluran air |
| Penghubung jalur pipa Diam Biasa. |
Flensa OD | terima kasihDari Flange Min | Diam. dari Pusat |
Diameter Wajah Terangkat | Panjang Hub.Y | Membosankan | Diam. dari Bolt Lingkaran |
Diam. dari Bolt lubang |
Nomor dari Baut |
Diam.dari Baut (inci) |
KG | LB | |
| inci | dn | HAI | C | x | G | kamu | B | SM | BH | BN | BD | ||
| 1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 22.40 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" | 20 | 98,50 | 12.70 | 38.10 | 42.90 | 15.70 | 27.70 | 69,90 | 15.80 | 4 | 1/2" | 0,7 | 1.5 |
| 1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 34.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
| 1-1/4" | 32 | 117,50 | 15.70 | 58.70 | 63.50 | 20.60 | 43.20 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 49.50 | 98.60 | 15.80 | 4 | 1/2" | 1.4 | 3.1 |
| 2" | 50 | 152,50 | 19.10 | 77.70 | 91.90 | 25.40 | 62.00 | 120.70 | 19.10 | 4 | 5/8" | 2.2 | 4.8 |
| 2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104,60 | 28.40 | 74.70 | 139,70 | 19.10 | 4 | 5/8" | 3.5 | 7.7 |
| 3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 90.70 | 152.40 | 19.10 | 4 | 5/8" | 3.8 | 8.4 |
| 3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139,70 | 31.80 | 103,40 | 177,80 | 19.10 | 8 | 5/8" | 5 | 11 |
| 4" | 100 | 228.50 | 23.90 | 134,90 | 157,20 | 33.30 | 116.10 | 190.50 | 19.10 | 8 | 5/8" | 5.6 | 12.3 |
| 5" | 125 | 254.00 | 23.90 | 163,60 | 185.70 | 36.60 | 143,80 | 215,90 | 22.40 | 8 | 3/4" | 6.5 | 14.3 |
| 6" | 150 | 279.50 | 25.40 | 192.00 | 215,90 | 39.60 | 170.70 | 241,30 | 22.40 | 8 | 3/4" | 8.1 | 18 |
| 8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 221.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
| 10" | 250 | 406,50 | 30.20 | 304.80 | 323.90 | 49.30 | 276.40 | 362.00 | 25.40 | 12 | 7/8" | 18.4 | 40 |
| 12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 327.20 | 431.80 | 25.40 | 12 | 7/8" | 28.5 | 63 |
| 14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 359.20 | 476.30 | 28.50 | 12 | 1" | 37.5 | 83 |
| 16" | 400 | 597,00 | 36.60 | 457.20 | 469.90 | 63.50 | 410.50 | 539.80 | 28.50 | 16 | 1" | 44.5 | 98 |
| 18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 461.80 | 577.90 | 31.80 | 16 | 1 1/8" | 54 | 119 |
| 20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 513.10 | 635.00 | 31.80 | 20 | 1 1/8" | 72 | 158 |
| 24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82,60 | 616.00 | 749.30 | 35.10 | 20 | 1 1/4" | 95 |
200 |
