Detail produk:
|
| Menghasilkan Metode: | Ditempa | Standar: | BS4504 |
|---|---|---|---|
| Tekanan: | PN6,PN10;PN16;PN25;PN40;PN63;PN100 BS10 TABEL D , BS10 TABEL E | Kisaran ukuran: | DN15-DN2000 |
| Jenis mengarah: | Plat flange, Blind, Slip on, Welding Neck, Threaded flange | Bahan: | Carbon steel A105; Baja karbon A105; C22.8; C22.8; ST37.2; ST3 |
| Lapisan: | Cat Hitam, Cat Kuning, Galvanis Panas, Galvanis Dingin Dan Minyak | Pengepakan: | Kasing atau Pallet Kayu Lapis Layak Laut |
| Cahaya Tinggi: | DN2000 CS SS BS10 FLANGE BS 4504,FLANGE BS 4504 PN16 ST37.2,bs4504 pn10 Hot Dip Galvanis |
||

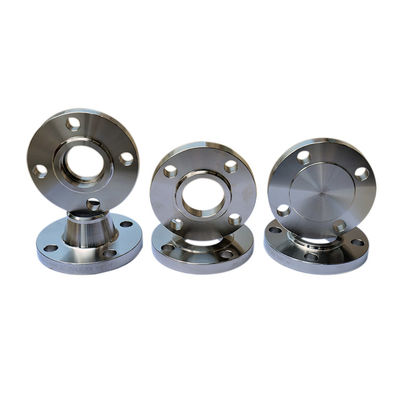

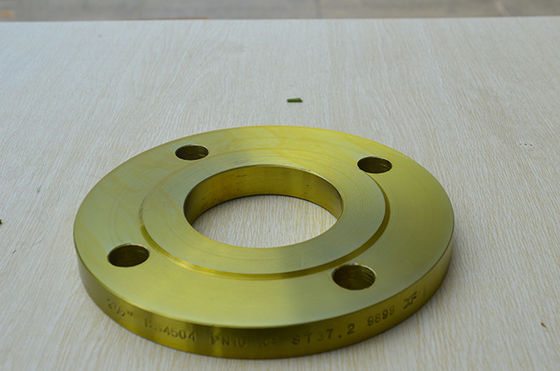

BS4504 PN10, PN16 PLATE FLANGE, BLIND SLIP ON DAN NECK FLANGE DILAS DENGAN HOT DIP GALVANIS
Memperkenalkan Produk Product
| Produk | Flensa baja penempaan panas |
| Standar | BS4504 |
| Jenis flensa | 101 PIRING;105 BUTA;111 LEHER LAS;112 SLIP ON;113 THREADED BS10 TABEL D , TALE E, TABEL F , TABEL H |
| Kisaran ukuran | DN10-DN2000 |
| Tekanan | PN6;PN10; PN16; PN25; PN40; PN63; PN100 |
| Bahan | baja karbon A105;C22.8;ST37.2;S235JR;baja tahan karat 304/304L;316/316L; |
| Pengepakan | kasus kayu lapis atau palet yang layak laut |

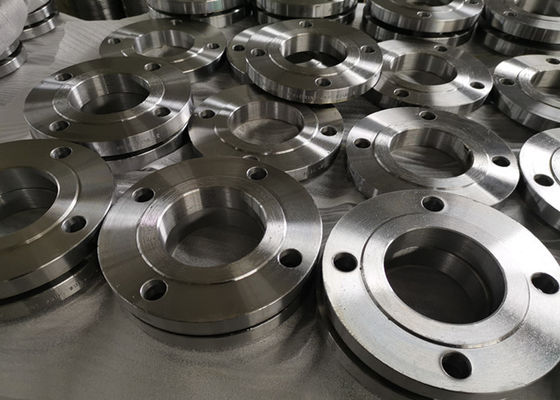

Produk: Flensa baja penempaan panas
Standar: BS4504
Jenis flange: 101 PLATE;105 BUTA;111 LEHER LAS;112 SLIP ON;113 BERULANG
Rentang ukuran: DN10-DN2000
Tekanan: PN6;PN10; PN16; PN25; PN40; PN63; PN100
Bahan: baja karbon A105;C22.8;ST37.2;S235JR;baja tahan karat 304/304L;316/316L;
Packing: kasus kayu lapis atau palet yang layak laut
| Nominal | OD dari | Dia.dari | Dia.dari | jumlah dari | Dia.dari | Ketebalan | |||||||
| Ukuran pipa | Pipa | Penghubung jalur pipa | Lingkaran Baut | Baut | Baut | ||||||||
| 1/2" | 21.3 | 95.3 | 66.7 | 4 | 12,7 | 4.8 | |||||||
| 3/4" | 26.7 | 101.6 | 73.0 | 4 | 12,7 | 4.8 | |||||||
| 1" | 33.4 | 114.3 | 82.6 | 4 | 12,7 | 4.8 | |||||||
| 1 1/4" | 42.2 | 120.7 | 87.6 | 4 | 12,7 | 6.4 | |||||||
| 1 1/2" | 48.3 | 133.4 | 98.4 | 4 | 12,7 | 6.4 | |||||||
| 2" | 60.3 | 152.4 | 114.3 | 4 | 15.9 | 7.9 | |||||||
| 2 1/2" | 73.0 | 165.1 | 127.0 | 4 | 15.9 | 7.9 | |||||||
| 3" | 88.9 | 184.2 | 146.1 | 4 | 15.9 | 9.5 | |||||||
| 3 1/2" | 101.6 | 203.2 | 165.1 | 4 | 15.9 | 9.5 | |||||||
| 4" | 114.3 | 215.9 | 177.8 | 4 | 15.9 | 9.5 | |||||||
| 5" | 141.3 | 254.0 | 209.6 | 8 | 15.9 | 12,7 | |||||||
| 6" | 168.3 | 279.4 | 228.6 | 8 | 15.9 | 12,7 | |||||||
| 7" | 190.5 | 304.8 | 260.4 | 8 | 15.9 | 12,7 | |||||||
| 8" | 219.1 | 336.6 | 292.1 | 8 | 15.9 | 12,7 | |||||||
| 9" | 244.5 | 368.3 | 323.9 | 8 | 15.9 | 15.9 | |||||||
| 10" | 273.0 | 406.4 | 355.6 | 8 | 19.1 | 15.9 | |||||||
| 12" | 323.9 | 457.2 | 406.4 | 12 | 19.1 | 15.9 | |||||||
| 14" | 355.6 | 527.1 | 469.9 | 12 | 22.2 | 19.1 | |||||||
| 16" | 406.4 | 577.9 | 520.7 | 12 | 22.2 | 19.1 | |||||||
| 18" | 457.2 | 641.4 | 584.2 | 12 | 22.2 | 22.2 | |||||||
| 20" | 508.0 | 704.9 | 641.4 | 16 | 22.5 | 25.4 | |||||||
| 24" | 609.6 | 825.5 | 755.7 | 16 | 25.4 | 28.6 | |||||||
| Nominal | Dia.dari | Dia.dari | jumlah dari | Dia.dari | Ketebalan | |||||
| Ukuran pipa | Penghubung jalur pipa | Lingkaran Baut | Baut | Baut | ||||||
| 1/2" | 95.3 | 66.7 | 4 | 12,7 | 6.4 | |||||
| 3/4" | 101.6 | 73.0 | 4 | 12,7 | 6.4 | |||||
| 1" | 114.3 | 82.6 | 4 | 12,7 | 7.1 | |||||
| 1 1/4" | 120.7 | 87.3 | 4 | 12,7 | 7.9 | |||||
| 1 1/2" | 133.4 | 98.4 | 4 | 12,7 | 8.7 | |||||
| 2" | 152.4 | 114.3 | 4 | 15.9 | 9.5 | |||||
| 2 1/2" | 165.1 | 127.0 | 4 | 15.9 | 10.3 | |||||
| 3" | 184.2 | 146.1 | 4 | 15.9 | 11.1 | |||||
| 3 1/2" | 203.2 | 165.1 | 8 | 15.9 | 11.9 | |||||
| 4" | 215.9 | 177.8 | 8 | 15.9 | 12,7 | |||||
| 5" | 254.0 | 209.6 | 8 | 15.9 | 14.3 | |||||
| 6" | 279.4 | 228.6 | 8 | 19.1 | 17.5 | |||||
| 7" | 304.8 | 260.4 | 8 | 19.1 | 19.1 | |||||
| 8" | 336.6 | 292.1 | 8 | 19.1 | 19.1 | |||||
| 9" | 368.3 | 323.9 | 12 | 19.1 | 20.6 | |||||
| 10" | 406.4 | 355.6 | 12 | 19.1 | 22.2 | |||||
| 12" | 457.2 | 406.4 | 12 | 22.2 | 25.4 | |||||
| 14" | 527.2 | 469.9 | 12 | 22.2 | 25.4 | |||||
| 16" | 577.9 | 520.7 | 12 | 22.2 | 25.4 | |||||
| 18" | 641.4 | 584.2 | 16 | 22.2 | 28.6 | |||||
| 20" | 704.9 | 647.4 | 16 | 22.2 | 31.8 | |||||
| 24" | 825.5 | 755.7 | 16 | 25.4 | 38.1 | |||||
| Nominal | OD dari | dia dari | dia dari | jumlah dari | Dia.dari | Ketebalan | |||||||
| Ukuran pipa | Pipa | Penghubung jalur pipa | Lingkaran Baut | Baut | Baut | ||||||||
| 1/2" | 21.3 | 95.3 | 66.7 | 4 | 12,7 | 9.5 | |||||||
| 3/4" | 26.7 | 101.6 | 73.0 | 4 | 12,7 | 9.5 | |||||||
| 1" | 33.4 | 120.7 | 87.3 | 4 | 15.9 | 9.5 | |||||||
| 1 1/4" | 42.2 | 133.4 | 98.4 | 4 | 15.9 | 12,7 | |||||||
| 1 1/2" | 48.3 | 139.7 | 104.8 | 4 | 15.9 | 12,7 | |||||||
| 2" | 60.3 | 165.1 | 127.0 | 4 | 15.9 | 15.9 | |||||||
| 2 1/2" | 73.0 | 184.2 | 146.1 | 8 | 15.9 | 15.9 | |||||||
| 3" | 88.9 | 203.2 | 165.1 | 8 | 15.9 | 15.9 | |||||||
| 3 1/2" | 101.6 | 215.9 | 177.8 | 8 | 15.9 | 19.1 | |||||||
| 4" | 114.3 | 228.6 | 190.5 | 8 | 15.9 | 19.1 | |||||||
| 5" | 141.3 | 279.4 | 235.0 | 8 | 19.1 | 22.2 | |||||||
| 6" | 168.3 | 304.8 | 260.4 | 12 | 19.1 | 22.2 | |||||||
| 7" | 190.3 | 336.6 | 292.1 | 12 | 19.1 | 22.2 | |||||||
| 8" | 219.1 | 368.3 | 323.9 | 12 | 19.1 | 25.4 | |||||||
| 9" | 244.5 | 406.4 | 355.6 | 12 | 22.2 | 25.4 | |||||||
| 10" | 273.0 | 431.8 | 381.0 | 12 | 22.2 | 25.4 | |||||||
| 12" | 323.0 | 489.0 | 438.2 | 16 | 22.2 | 28.6 | |||||||
| 14" | 355.6 | 552.5 | 495,3 | 16 | 25.4 | 31.8 | |||||||
| 16" | 406.4 | 609.6 | 552.5 | 20 | 25.4 | 31.8 | |||||||
| 18" | 457.2 | 673.1 | 609.6 | 20 | 28.6 | 34.9 | |||||||
| 20" | 508.0 | 736.6 | 673.1 | 24 | 28.6 | 38.1 | |||||||
| 24" | 609.6 | 850,9 | 781.1 | 24 | 31.8 | 41.3 | |||||||
| Nominal | dia dari | Dia.dari | jumlah dari | Dia.dari | Ketebalan | |||||||||||||
| Ukuran pipa | Penghubung jalur pipa | Lingkaran Baut | Baut | Baut | ||||||||||||||
| 1/2" | 114.3 | 82.6 | 4 | 15.9 | 12,7 | |||||||||||||
| 3/4" | 114.3 | 82.6 | 4 | 15.9 | 12,7 | |||||||||||||
| 1" | 120,78 | 87.3 | 4 | 15.9 | 14.3 | |||||||||||||
| 1 1/4" | 133.4 | 98.4 | 4 | 15.9 | 17.5 | |||||||||||||
| 1 1/2" | 139.7 | 104.8 | 4 | 15.9 | 17.5 | |||||||||||||
| 2" | 165.1 | 127.0 | 4 | 15.9 | 19.1 | |||||||||||||
| 2 1/2" | 184.2 | 146.1 | 8 | 15.9 | 19.1 | |||||||||||||
| 3" | 203.2 | 165.1 | 8 | 15.9 | 22.2 | |||||||||||||
| 3 1/2" | 215.9 | 177.8 | 8 | 15.9 | 22.2 | |||||||||||||
| 4" | 228.6 | 190.5 | 8 | 15.9 | 25.4 | |||||||||||||
| 5" | 279.4 | 235.0 | 8 | 19.1 | 28.6 | |||||||||||||
| 6" | 304.8 | 260.4 | 12 | 19.1 | 28.6 | |||||||||||||
| 7" | 336.6 | 292.1 | 12 | 19.1 | 31.8 | |||||||||||||
| 8" | 368.3 | 323.9 | 12 | 19.1 | 31.8 | |||||||||||||
| 9" | 406.4 | 355.6 | 12 | 22.2 | 34.9 | |||||||||||||
| 10" | 431.8 | 381.0 | 12 | 22.2 | 34.9 | |||||||||||||
| 12" | 489.0 | 438.2 | 16 | 22.2 | 38.1 | |||||||||||||
| 14" | 552.5 | 495,3 | 16 | 25.4 | 41.3 | |||||||||||||
| 16" | 609.6 | 552.5 | 20 | 25.4 | 44.5 | |||||||||||||
| 18" | 673.1 | 609.6 | 20 | 28.6 | 47.6 | |||||||||||||
| 20" | 736.6 | 673.1 | 24 | 28.6 | 50.8 | |||||||||||||
| 24" | 850,9 | 781.1 | 24 | 31.8 | 57.2 | |||||||||||||
BORE NOMINAL15 |
DIAMETER FLANGE dalam mm |
PCD |
baut |
UKURAN BAUT |
UKURAN LUBANG |
KETEBALAN |
|---|---|---|---|---|---|---|
| Tabel D | 3 3/4" / 95 | 2 5/8" / 67" | 4 | 1/2" | 9/16" / 14" | 3/8" / 10 |
| Tabel E | 3 3/4" / 95 | 2 5/8" / 67" | 4 | 1/2" | 9/16" / 14" | 3/8" / 10 |
| Tabel F | 3 3/4" / 95 | 2 5/8" / 67" | 4 | 1/2" | 9/16" / 14" | 3/8" / 10 |
| Tabel H | 4 1/2" / 114 | 3 1/4" / 83 | 4 | 5/8" | 11/16" / 17" | 1/2" / 13 |
| Tabel J | 4 1/2" / 114 | 3 1/4" / 83 | 4 | 5/8" | 11/16" / 17" | 5/8" / 16" |
| Tabel K | 4 1/2" / 114 | 3 1/4" / 83 | 4 | 5/8" | 11/16" / 17" | 3/4" / 19 |
BORE NOMINAL20 |
DIAMETER FLANGE dalam mm |
PCD |
baut |
UKURAN BAUT |
UKURAN LUBANG |
KETEBALAN |
| Tabel D | 4" / 102" | 2 7/8" / 73" | 4 | 1/2" | 9/16" / 14" | 3/8" / 10" |
| Tabel E | 4" / 102" | 2 7/8" / 73" | 4 | 1/2" | 9/16" / 14" | 3/8" / 10" |
| Tabel F | 4" / 102" | 2 7/8" / 73" | 4 | 1/2" | 9/16" / 14" | 3/8" / 10" |
| Tabel H | 4 1/2" / 114" | 3 1/4" / 83" | 4 | 5/8" | 11/16" / 17" | 1/2" / 13" |
| Tabel J | 4 1/2" / 114" | 3 1/4" / 83" | 4 | 5/8" | 11/16" / 17" | 5/8" / 16" |
| Tabel K | 4 1/2" / 114" | 3 1/4" / 83" | 4 | 5/8" | 11/16" / 17" | 3/4" / 19" |
BORE NOMINAL25 |
DIAMETER FLANGE |
PCD |
baut |
UKURAN BAUT |
UKURAN LUBANG |
KETEBALAN |
| Tabel D | 4 1/2" / 114 | 3 1/4" / 83 | 4 | 1/2" | 9/16" / 14" | 3/8" / 10 |
| Tabel E | 4 1/2" / 114 | 3 1/4" / 83 | 4 | 1/2" | 9/16" / 14" | 3/8" / 10 |
| Tabel F | 4 3/4" / 121 | 3 7/16" / 87" | 4 | 5/8" | 9/16" / 14" | 3/8" / 10 |
| Tabel H | 4 3/4" / 121 | 3 7/16" / 87" | 4 | 5/8" | 11/16" / 17" | 9/16" / 14" |
| Tabel J | 4 3/4" / 121 | 3 7/16" / 87" | 4 | 5/8" | 11/16" / 17" | 3/4" / 19 |
| Tabel K | 5" / 127 | 3 3/4" / 95 | 4 | 5/8" | 11/16" / 17" | 7/8" / 22" |
BORE NOMINAL32 |
DIAMETER FLANGE |
PCD |
baut |
UKURAN BAUT |
UKURAN LUBANG |
KETEBALAN |
| Tabel D | 4 3/4" / 121 | 3 7/16" / 87" | 4 | 1/2" | 9/16" / 14" | 1/2" / 13 |
| Tabel E | 4 3/4" / 121 | 3 7/16" / 87" | 4 | 1/2" | 9/16" / 14" | 1/2" / 13 |
| Tabel F | 5 1/4" / 133" | 3 7/8" / 98" | 4 | 5/8" | 11/16" / 17" | 1/2" / 13 |
| Tabel H | 5 1/4" / 133" | 3 7/8" / 98" | 4 | 5/8" | 11/16" / 17" | 11/16" / 17" |
| Tabel J | 5 1/4" / 133" | 3 7/8" / 98" | 4 | 5/8" | 11/16" / 17" | 3/4" / 19 |
| Tabel K | 5 1/4" / 133" | 3 7/8" / 98" | 4 | 5/8" | 11/16" / 17" | 7/8" / 22" |
BORE NOMINAL40 |
DIAMETER FLANGE |
PCD |
baut |
UKURAN BAUT |
UKURAN LUBANG |
KETEBALAN |
| Tabel D | 5 1/4" / 133" | 3 7/8" / 98" | 4 | 1/2" | 9/16" / 14" | 1/2" / 13 |
| Tabel E | 5 1/4" / 133" | 3 7/8" / 98" | 4 | 1/2" | 9/16" / 14" | 1/2" / 13 |
| Tabel F | 5 1/2" / 140 | 4 1/8" / 105" | 4 | 5/8" | 11/16" / 17" | 1/2" / 13 |
| Tabel H | 5 1/2" / 140 | 4 1/8" / 105" | 4 | 5/8" | 11/16" / 17" | 11/16" / 17" |
| Tabel J | 5 1/2" / 140 | 4 1/8" / 105" | 4 | 5/8" | 11/16" / 17" | 7/8" / 22" |
| Tabel K | 6" / 152 | 4 1/2" / 114 | 4 | 3/4" | 7/8" / 22" | 1" / 25 |
BORE NOMINAL50 |
DIAMETER FLANGE |
PCD |
baut |
UKURAN BAUT |
UKURAN LUBANG |
KETEBALAN |
| Tabel D | 6" / 152 | 4 1/2" / 114 | 4 | 5/8" | 11/16" / 17" | 9/16" / 14" |
| Tabel E | 6" / 152 | 4 1/2" / 114 | 4 | 5/8" | 11/16" / 17" | 9/16" / 14" |
| Tabel F | 6 1/2" / 165 | 5" / 127 | 4 | 5/8" | 11/16" / 17" | 5/8" / 16" |
| Tabel H | 6 1/2" / 165 | 5" / 127 | 4 | 5/8" | 11/16" / 17" | 3/4" / 19 |
| Tabel J | 6 1/2" / 165 | 5" / 127 | 4 | 3/4" | 7/8" / 22" | 1" / 25 |
| Tabel K | 6 1/2" / 165 | 5" / 127 | 8 | 5/8" | 11/16" / 17" | 1" / 25 |
BORE NOMINAL65 |
DIAMETER FLANGE |
PCD |
baut |
UKURAN BAUT |
UKURAN LUBANG |
KETEBALAN |
| Tabel D | 6 1/2" / 165 | 5" / 127 | 4 | 5/8" | 11/16" / 17" | 9/16" / 14" |
| Tabel E | 6 1/2" / 165 | 5" / 127 | 4 | 5/8" | 11/16" / 17" | 9/16" / 14" |
| Tabel F | 7 1/4" / 184 | 5 3/4"/146" | 8 | 5/8" | 11/16" / 17" | 5/8" / 16" |
| Tabel H | 7 1/4" / 184 | 5 3/4"/146" | 8 | 5/8" | 11/16" / 17" | 3/4" / 19 |
| Tabel J | 7 1/4" / 184 | 5 3/4"/146" | 8 | 3/4" | 7/8" / 22" | 1" / 25 |
| Tabel K | 7 1/4" / 184 | 5 3/4"/146" | 8 | 3/4" | 7/8" / 22" | 1 1/8" / 29 |
BORE NOMINAL80 |
DIAMETER FLANGE |
PCD |
baut |
UKURAN BAUT |
UKURAN LUBANG |
KETEBALAN |
| Tabel D | 8 1/2"/216" | 7" / 178 | 4 | 5/8" | 11/16" / 17" | 11/16" / 17" |
| Tabel E | 8 1/2"/216" | 7" / 178 | 8 | 5/8" | 11/16" / 17" | 11/16" / 17" |
| Tabel F | 9" / 229 | 7 1/2" / 191 | 8 | 5/8" | 11/16" / 17" | 3/4" / 19 |
| Tabel H | 9" / 229 | 7 1/2" / 191 | 8 | 5/8" | 11/16" / 17" | 1" / 25 |
| Tabel J | 9" / 229 | 7 1/2" / 191 | 8 | 3/4" | 7/8" / 22" | 1 3/8" / 35 |
| Tabel K | 9 1/2" / 241 | 7 3/4" / 197 | 8 | 7/8" | 1" / 25 | 1 3/8" / 35 |
BORE NOMINAL100 |
DIAMETER FLANGE |
PCD |
baut |
UKURAN BAUT |
UKURAN LUBANG |
KETEBALAN |
| Tabel D | 8 1/2"/216" | 7" / 178 | 4 | 5/8" | 11/16" / 17" | 11/16" / 17" |
| Tabel E | 8 1/2"/216" | 7" / 178 | 8 | 5/8" | 11/16" / 17" | 11/16" / 17" |
| Tabel F | 9" / 229 | 7 1/2" / 191 | 8 | 5/8" | 11/16" / 17" | 3/4" / 19 |
| Tabel H | 9" / 229 | 7 1/2" / 191 | 8 | 5/8" | 11/16" / 17" | 1" / 25 |
| Tabel J | 9" / 229 | 7 1/2" / 191 | 8 | 3/4" | 7/8" / 22" | 1 3/8" / 35 |
| Tabel K | 9 1/2" / 241 | 7 3/4" / 197 | 8 | 7/8" | 1" / 25 | 1 3/8" / 35 |
FAQ
1. siapa kita?
Kami berbasis di Hebei, Cina, mulai dari 2001, menjual ke Asia Selatan (7,69%), Eropa Selatan (7,69%), Eropa Utara (7,69%), Amerika Tengah (7,69%), Eropa Barat (7,69%), Timur Asia (7,69%), Timur Tengah (7,69%), Oceania (7,69%), Afrika (7,69%), Asia Tenggara (7,69%), Eropa Timur (7,69%), Amerika Selatan (7,69%), Amerika Utara (7,69 %).Ada total sekitar 101-200 orang di kantor kami.
2. bagaimana kami bisa menjamin kualitas?
Selalu sampel pra-produksi sebelum produksi massal;
Selalu Inspeksi akhir sebelum pengiriman;
3. apa yang bisa Anda beli dari kami?
flange, siku, alat kelengkapan pipa
4. mengapa Anda harus membeli dari kami bukan dari pemasok lain?
batal
5. layanan apa yang bisa kami berikan?
Ketentuan Pengiriman yang Diterima: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Pengiriman Ekspres, DAF；
Mata Uang Pembayaran yang Diterima: USD,EUR,JPY,HKD,GBP,CNY;
Jenis Pembayaran yang Diterima: T/T,L/C,D/PD/A, Tunai;
Bahasa yang digunakan: Inggris, Cina, Rusia
Kontak Person: Miss. Mandy Liu
Tel: 0086 18903173335
Faks: 86-0317-6853077-6723871
