Detail produk:
|
| Bahan: | baja karbon dan stainless steel | Pengobatan permukaan: | Minyak ringan, Galvanis |
|---|---|---|---|
| Tekanan: | 600kpa 1000kpa 1600kpa 2500kpa | Tipe: | JADI, BUTA |
| Ukuran: | DN15-DN600 | ||
| Cahaya Tinggi: | 1600kpa 2500kpa Table D Flange,1600kpa Table E Flange,2500kpa Table D Flange |
||

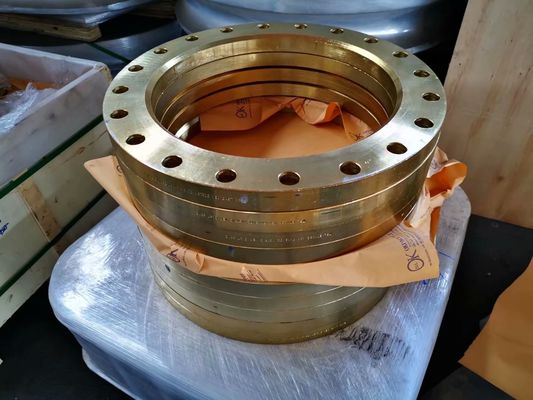

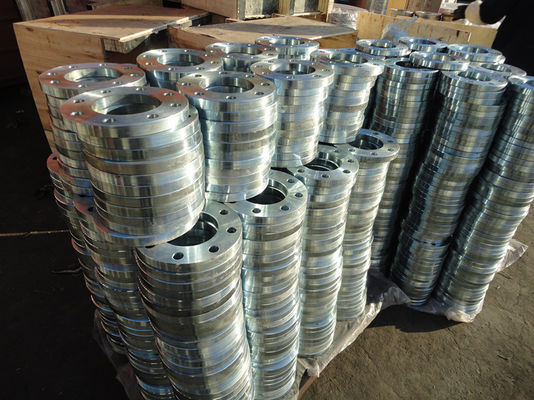

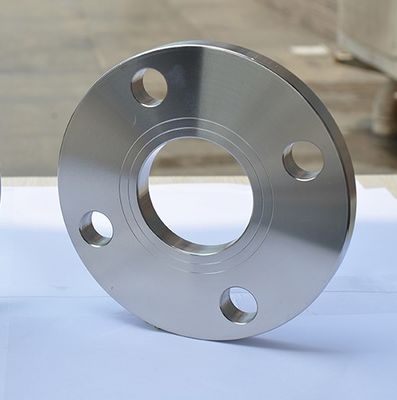

SABS 1123 PLATE FLANGE 600kpa 1000kpa 1600kpa 2500kpa TABEL D MEJA E FLANGE BAJA KARBON
|
STANDAR
|
Jenis |
Tekanan |
Bahan | ukuran |
Proses |
Permukaan perlakuan |
|
SABS1123
|
JADI, BUTA |
600kpa 1000kpa 1600kpa 2500kpa |
baja karbon besi tahan karat |
DN15-DN600 |
DItempa, ditempa |
cat kuning Minyak ringan |
Flensa SABS 1123
Flensa SABS 1123
| Nominal tekanan 1000 kPa 1000/2 = Meja 9 1000/4 = Meja 11 1000/3 = Meja 10 1000/8 = Meja 13 | ||||||||||||||||||
| No. Ukuran |
Pipa OD D1 |
Penghubung jalur pipa | Dibesarkan wajah |
baut |
Pengeboran | Leher | Bos | |||||||||||
| D | B | B1 | B2 | B3 | H | H1 | D4 | F | Tidak. | D2 | k | D3 | H2 | R | D5 | |||
| 10 | 17.2 | 90 | 8 | 10 | 8 | 10 | 14 | 35 | 40 | 2 | M12 | 4 | 14 | 60 | 28 | 6 | 4 | 30 |
| 15 | 21.3 | 95 | 8 | 10 | 8 | 10 | 14 | 35 | 45 | 2 | M12 | 4 | 14 | 65 | 32 | 6 | 4 | 35 |
| 20 | 26.9 | 105 | 8 | 10 | 8 | 10 | 16 | 38 | 58 | 2 | M12 | 4 | 14 | 75 | 40 | 6 | 4 | 45 |
| 25 | 33.7 | 115 | 8 | 10 | 8 | 10 | 16 | 38 | 68 | 2 | M12 | 4 | 14 | 85 | 46 | 6 | 4 | 52 |
| 32 | 42.4 | 140 | 10 | 10 | 10 | 10 | 20 | 40 | 78 | 2 | M16 | 4 | 18 | 100 | 56 | 6 | 6 | 60 |
| 40 | 48.3 | 150 | 10 | 10 | 10 | 10 | 20 | 42 | 88 | 3 | M16 | 4 | 18 | 110 | 64 | 7 | 6 | 70 |
| 50 | 60.3 | 165 | 12 | 10 | 10 | 12 | 20 | 45 | 102 | 3 | M16 | 4 | 18 | 125 | 75 | 8 | 6 | 85 |
| 65 | 76.1 | 185 | 12 | 12 | 12 | 12 | 26 | 45 | 122 | 3 | M16 | 4 | 18 | 145 | 90 | 10 | 6 | 105 |
| 80 | 88.9 | 200 | 14 | 12 | 12 | 14 | 26 | 50 | 138 | 3 | M16 | 8 | 18 | 160 | 105 | 10 | 8 | 118 |
| 100 | 114.3 | 220 | 14 | 12 | 12 | 14 | 32 | 52 | 158 | 3 | M16 | 8 | 18 | 180 | 131 | 12 | 8 | 140 |
| *125 | 139.7 | 250 | 16 | 14 | 14 | 16 | 36 | 55 | 188 | 3 | M16 | 8 | 18 | 210 | 156 | 12 | 8 | 168 |
| 150 | 168.3 | 285 | 18 | 16 | 16 | 18 | 38 | 55 | 212 | 3 | M20 | 8 | 22 | 240 | 184 | 12 | 10 | 195 |
| *175 | 193,7 | 315 | 18 | 16 | - | 18 | - | 60 | 242 | 3 | M20 | 8 | 22 | 270 | 210 | 12 | 10 | - |
| 200 | 219.1 | 340 | 18 | 18 | - | 18 | - | 62 | 268 | 3 | M20 | 8 | 22 | 295 | 235 | 16 | 10 | - |
| *225 | 244.5 | 370 | 18 | 18 | - | 18 | - | 62 | 290 | 3 | M20 | 8 | 22 | 325 | 265 | 16 | 10 | - |
| 250 | 273.0 | 395 | 20 | 20 | - | 20 | - | 68 | 320 | 3 | M20 | 12 | 22 | 350 | 292 | 16 | 12 | - |
| 300 | 323.9 | 445 | 22 | 22 | - | 22 | - | 68 | 370 | 4 | M20 | 12 | 22 | 400 | 344 | 16 | 12 | - |
| 350 | 355.6 | 505 | 26 | 25 | - | 25 | - | 68 | 430 | 4 | M20 | 16 | 22 | 460 | 385 | 16 | 12 | - |
| 400 | 406.4 | 565 | 26 | 25 | - | 25 | - | 72 | 482 | 4 | M24 | 16 | 26 | 515 | 400 | 16 | 12 | - |
| 450 | 457.2 | 615 | 28 | 30 | - | 30 | - | 72 | 532 | 4 | M24 | 20 | 26 | 565 | 492 | 16 | 12 | - |
| 500 | 508.0 | 670 | 28 | 32 | - | 32 | - | 75 | 585 | 4 | M24 | 20 | 26 | 620 | 542 | 16 | 12 | - |
| 550 | 559.0 | 730 | 28 | 35 | - | 35 | - | 80 | 635 | 5 | M24 | 20 | 26 | 675 | 592 | 18 | 12 | - |
| 600 | 609.6 | 780 | 28 | 38 | - | 38 | - | 80 | 685 | 5 | M24 | 20 | 26 | 725 | 642 | 18 | 12 | - |
........
Bahan
1) Baja Karbon P245GH, P250GH, S235 & Stainless Steel SS304, SS316, SS316L
Permukaan Antirust:
Permukaan antirust 1: Minyak ringan antirust
Permukaan antirust 2: Lapisan cat hitam
Permukaan antirust 3: Lapisan cat kuning
Antirust permukaan 4: Galnav (Hot Dipped Galvanized atau Electro Galvanized)
Hubungkan Wajah:
Permukaan 1: Hasil akhir yang halus
Permukaan 2: Sprial bergerigi
Permukaan 3: Dua atau tiga alur (Saluran Air)
(Wajah terangkat = RF , Wajah datar = FF)
Ketentuan:
1) Pembayaran: L/C yang tidak dapat dibatalkan pada pandangan atau T/T, D/P
2) Istilah pengiriman FOB China Port atau CIF Buyer's Port
3) Pengepakan: Pallet / kasing kayu lapis
